Save Labor & Material Costs. Install it Faster with an Itch-Free, Low-e Duct Solution.

FI-FOIL® high thermal performance reflective HVAC duct Insulation is a smart alternative to fiberglass, foam board and spray foam insulation.

FI-FOIL® HVAC Duct Insulation meets the highest industry standards. With Class A and Class 1 flammability ratings and as a Class 1 vapor retarder, our duct insulation provides superior protection from fire and moisture accumulation.

Low-e surfaces of FI-FOIL® HVAC Insulation wrap reflect heat rather than absorb it, providing superior thermal resistance to keep buildings cooler in the Summer and warmer in the Winter. The result is greater efficiency and performance year-round.

FI-FOIL® HVAC insulation is a clean, sustainable solution to improve energy efficiency, comfort and building resilience.

Key Features and Benefits of Reflective HVAC Insulation Wrap

  • Stops 94% of Radiant Heat Transfer
  • Low-e surfaces reflect heat rather than absorbing it
  • Reduces the Load on HVAC Ducts to Improve Overall Performance of the System
  • Improves Energy Efficiency to Lower Monthly Utility Costs
  • Reduces Condensation for Better Indoor Air Quality
  • Class A / Class 1 Flammability Ratings
  • Class 1 Vapor Retarder
  • Keeps Buildings Cooler in the Summer, Warmer in the Winter
  • Limited Lifetime Warranty Available
  • 5/16” Thick
  • Two (2) Outer Layers of Low-e Reflective Film

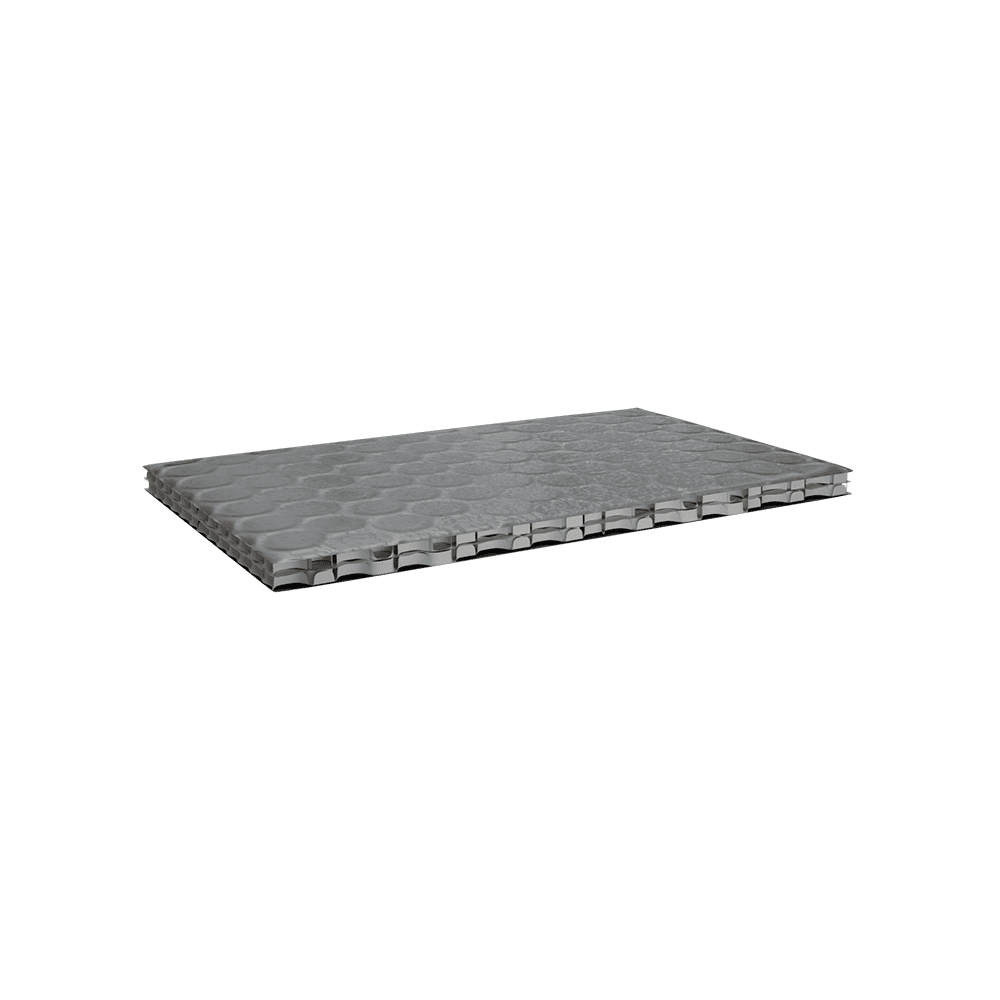

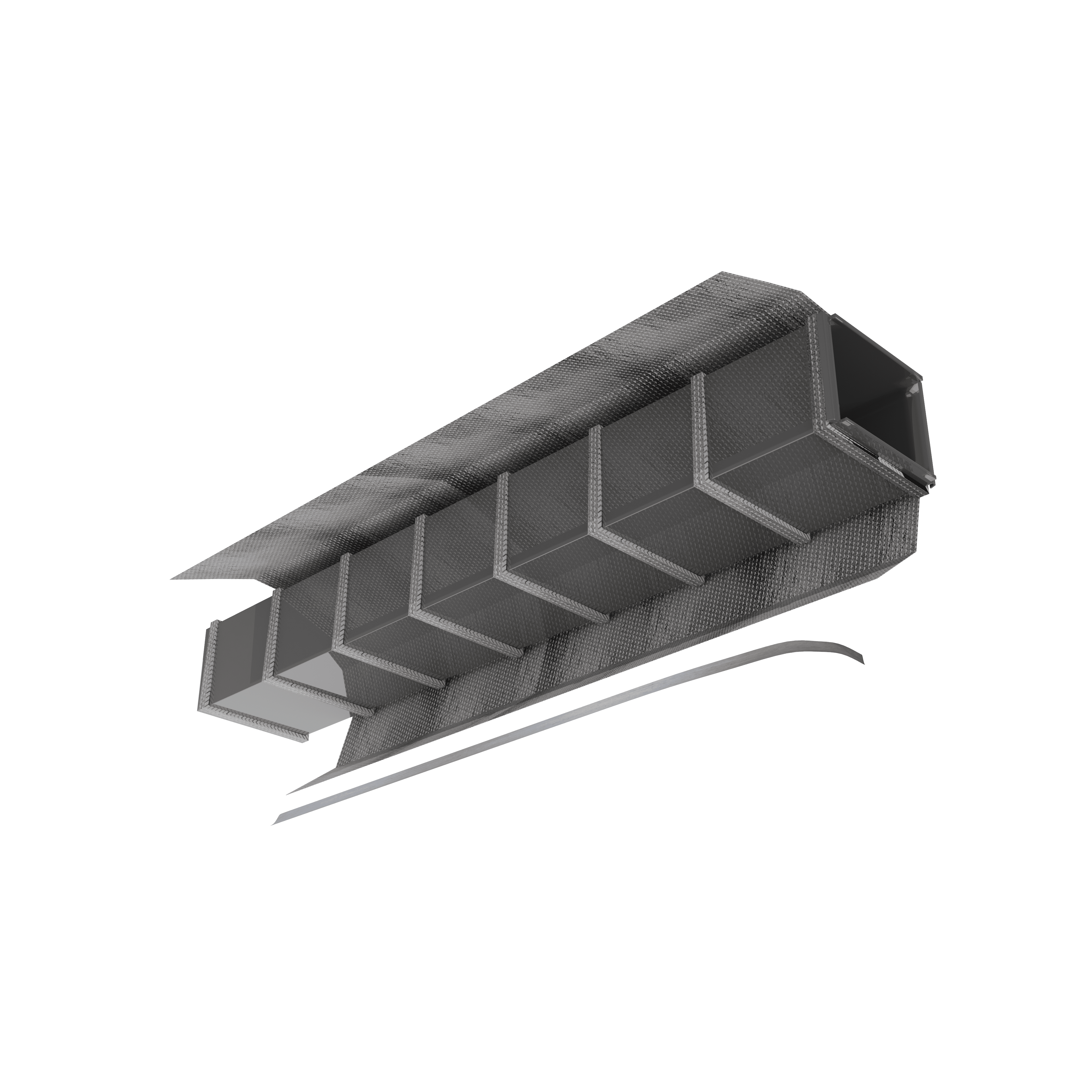

  • Two (2) Inner Layers of Clear Polyethylene Bubble Insulation Sealed with an Outer Layer of Premium Metalized Film
  • Class A / Class 1 Flammability Ratings
  • Class 1 Vapor Retarder
  • Lightweight Flexible Material
  • Easy to Cut, Fit, and Seal Joints and Penetrations
  • Improves Duct Performance Reduces Load on HVAC Systems
  • Increases Energy Efficiency & Lowers Utility Bills

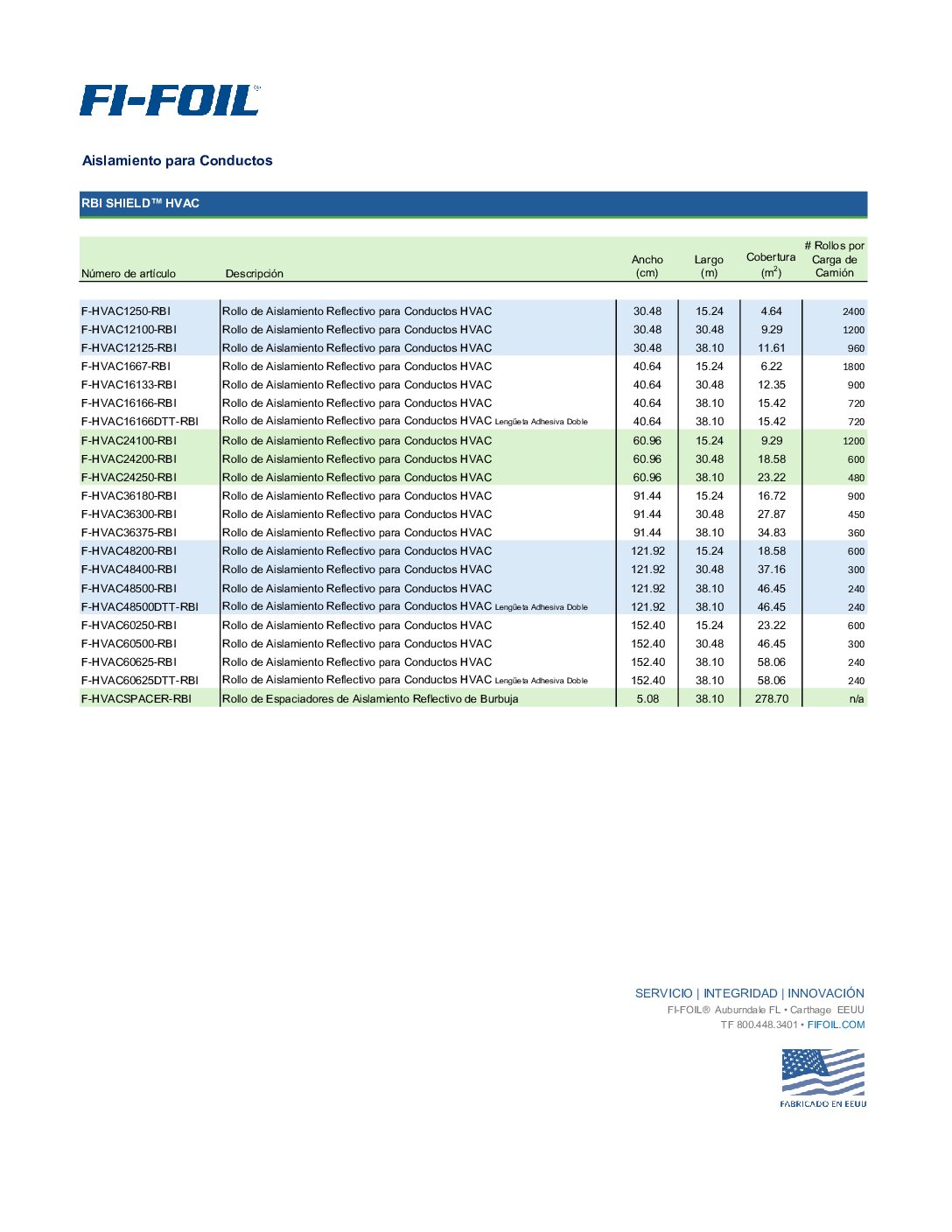

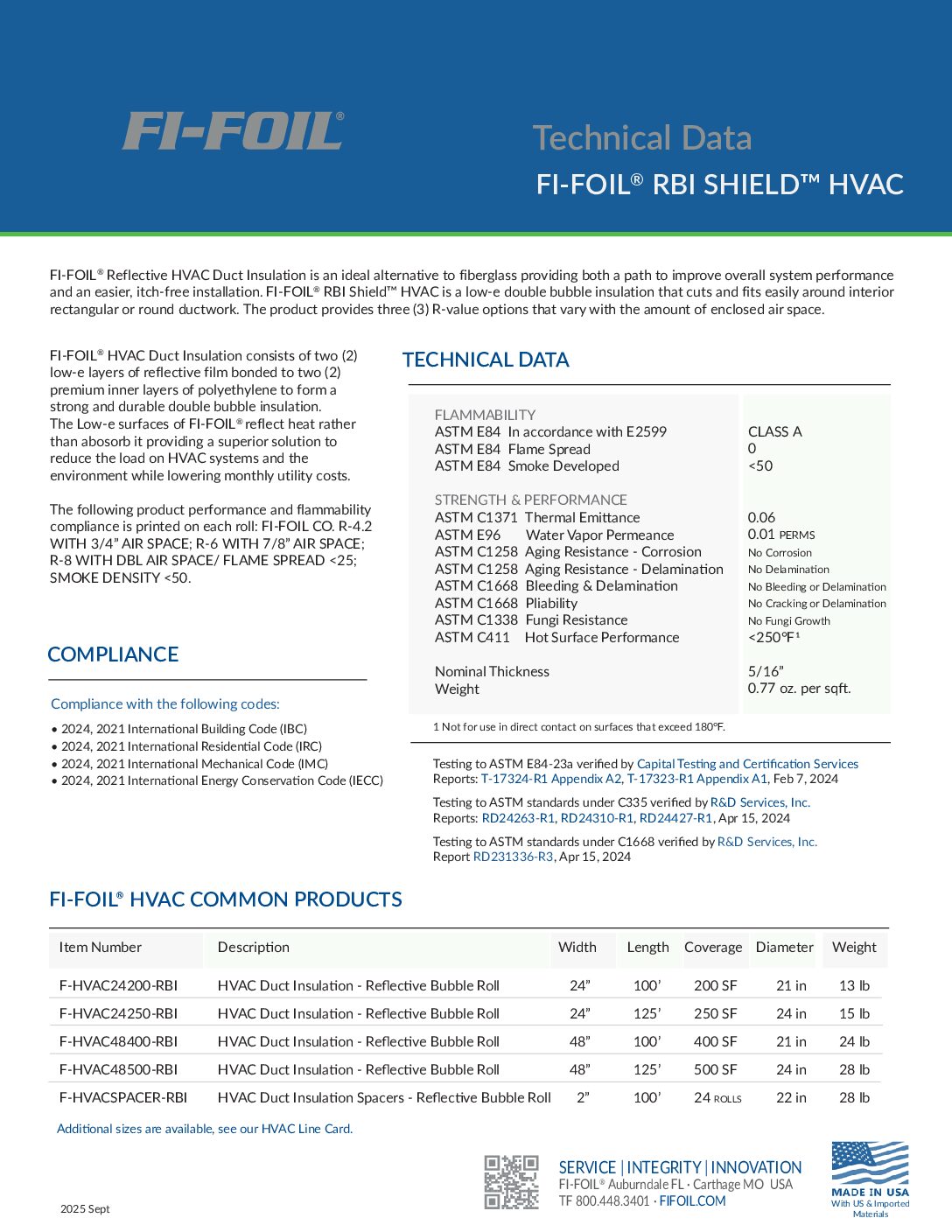

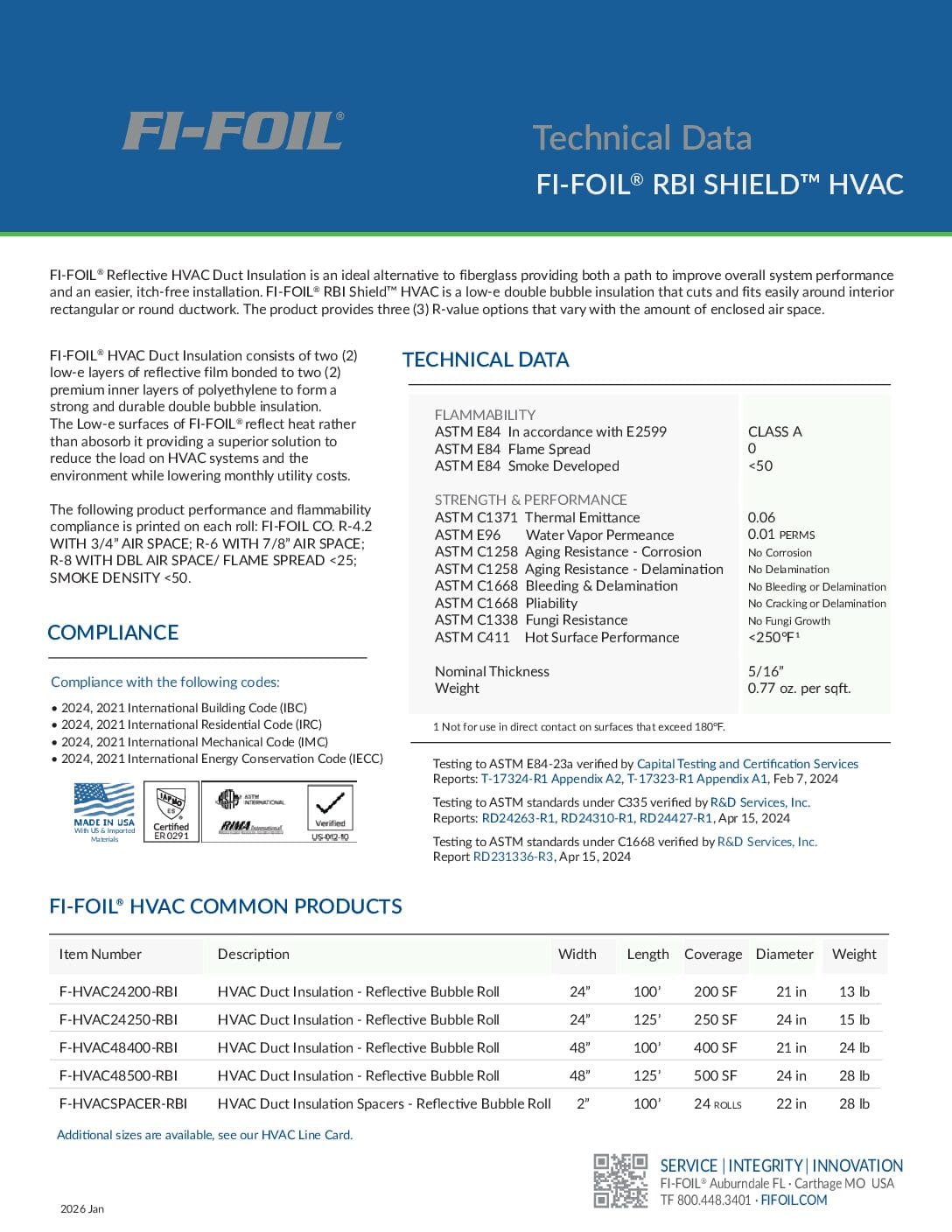

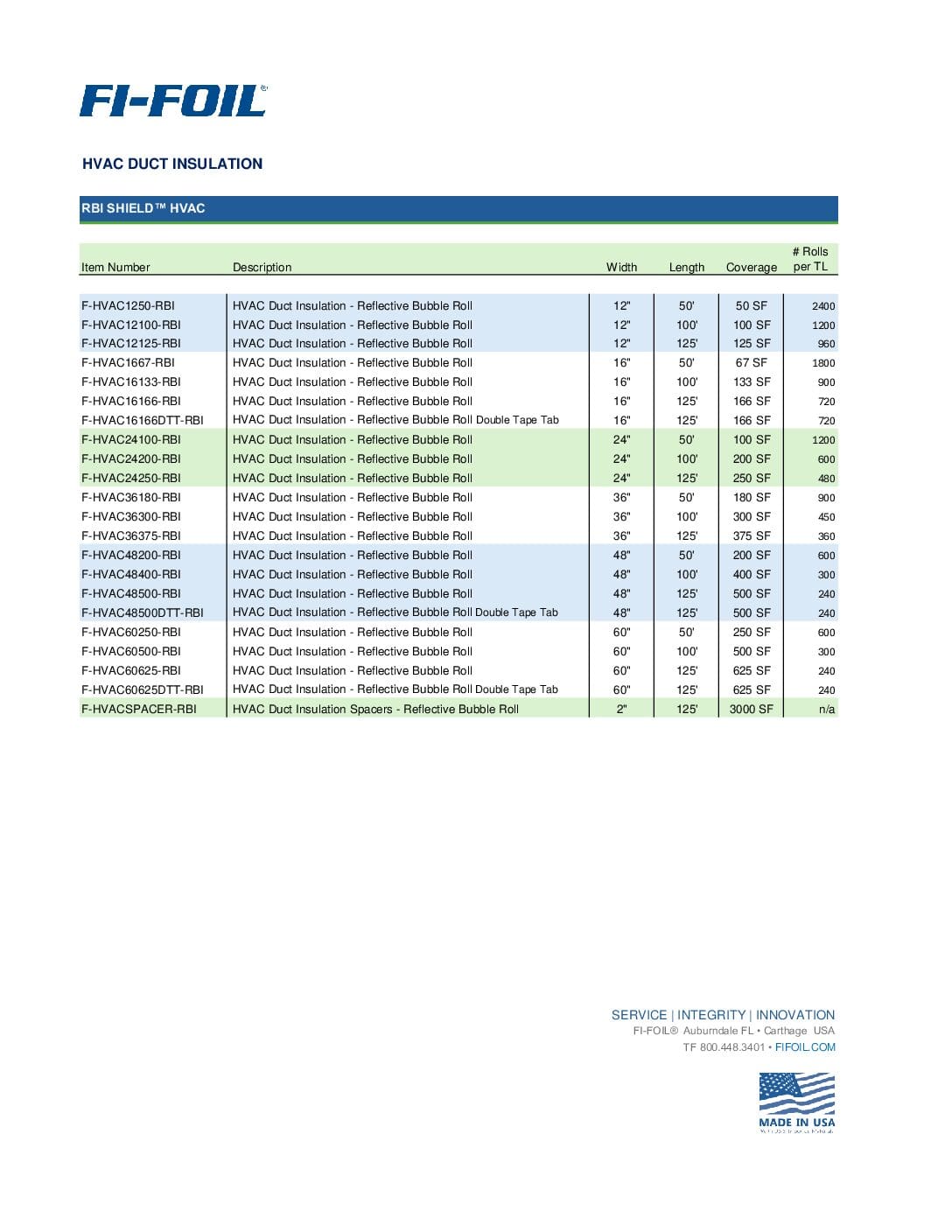

Detailed Specifications of Reflective HVAC Insulation

Description Width Length Coverage Roll Diameter Roll Weight

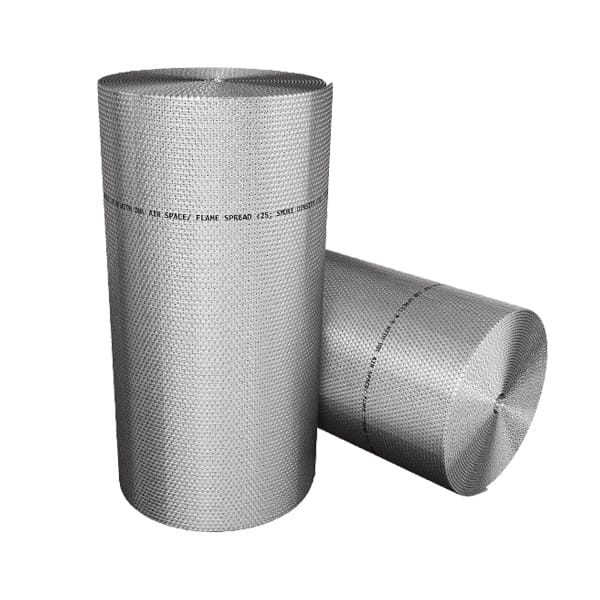

HVAC Duct Insulation – Reflective Double Bubble Roll 24″ 100′ 200 SF 21 in. 13 lb.
HVAC Duct Insulation – Reflective Double Bubble Roll 24″ 125′ 250 SF 24 in. 15 lb.
HVAC Duct Insulation – Reflective Double Bubble Roll 48″ 100′ 400 SF 21 in. 24 lb.
HVAC Duct Insulation – Reflective Double Bubble Roll 48″ 125′ 500 SF 24 in. 28 lb.
HVAC Duct Insulation Spacers – Reflective Double Bubble Roll 2″ 125′ 24 Rolls 24 in. 28 lb.

Flammability Data

Test Method Description Results
ASTM E84 In accordance with E2599 CLASS A
ASTM E84 Flame Spread 0
ASTM E84 Smoke Developed <50

Strength & Performance Data

Test Method Description Results
ASTM C1371 Thermal Emittance 0.06
ASTM E96 Water Vapor Permeance 0.01 PERMS
ASTM C1258 Aging Resistance – Corrosion No Corrosion
ASTM C1258 Aging Resistance – Delamination No Delamination
ASTM C1668 Bleeding & Delamination No Bleeding or Delamination
ASTM C1668 Pliability, Bleeding & Delamination No Cracking or Delamination
ASTM C1668 Fungi Resistance No Fungi Growth
ASTM C411 Hot Surface Performance PASS (up to 250°F)

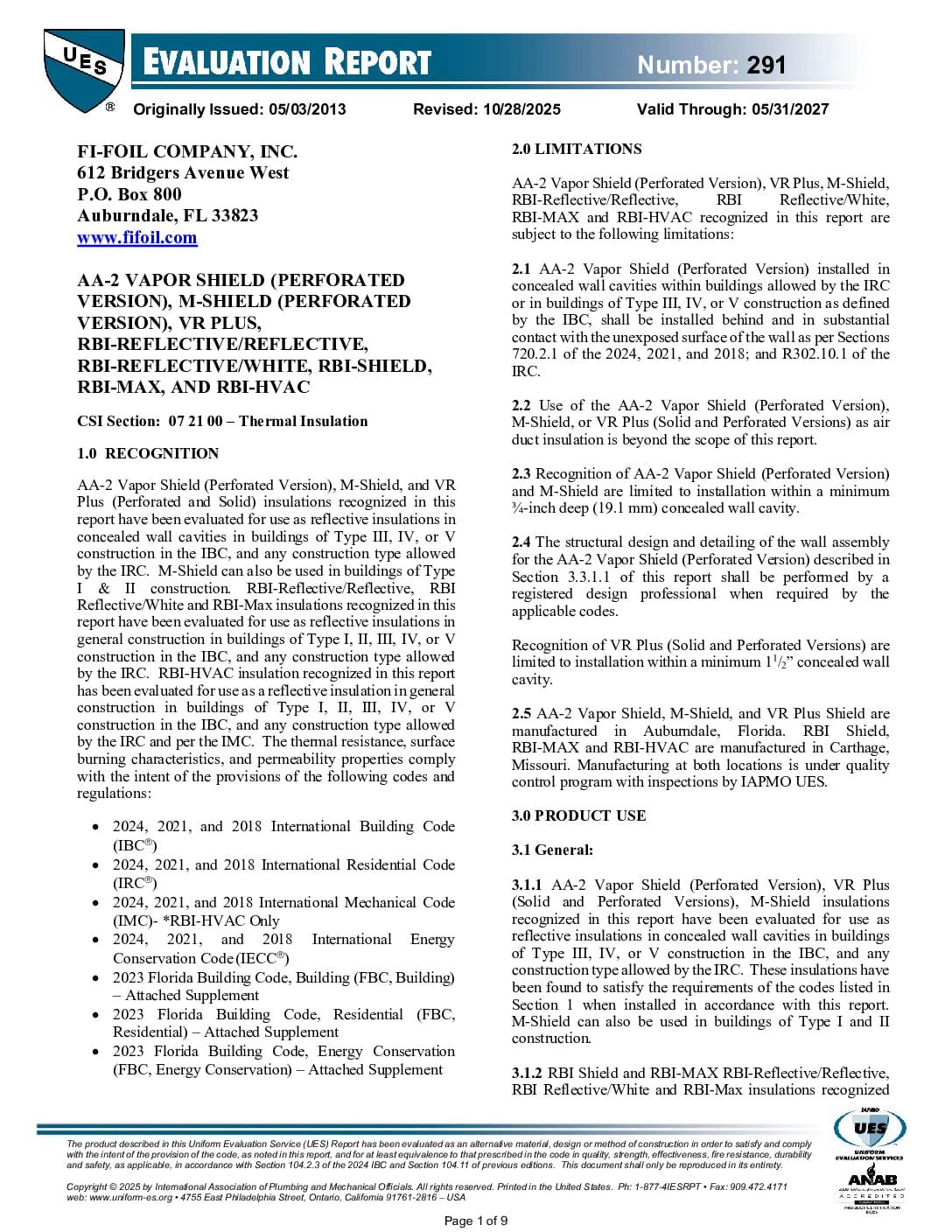

Codes and Compliances for HVAC Insulation Standards

  • ASTM C1224 Reflective Insulation
  • ASTM C1668 Reflective Insulation on Rigid Ducts
  • ASTM E84 & E2599 Surface Burning Characteristics
  • ASTM C411 Hot Surface Performance
  • ASTM C335 Thermal Resistance
  • ASTM E96 Water Vapor Permeance
  • ASTM C1338 Fungi Resistance
  • ASTM C1668 Pliability, Bleeding & Delamination
  • ASTM C1258 Aging Resistance – Corrosion & Delamination

TECHNICAL DOCUMENTS

  • RBI Shield™ HVAC CSI 3-Part Guide Specification

    339 KB | RTF

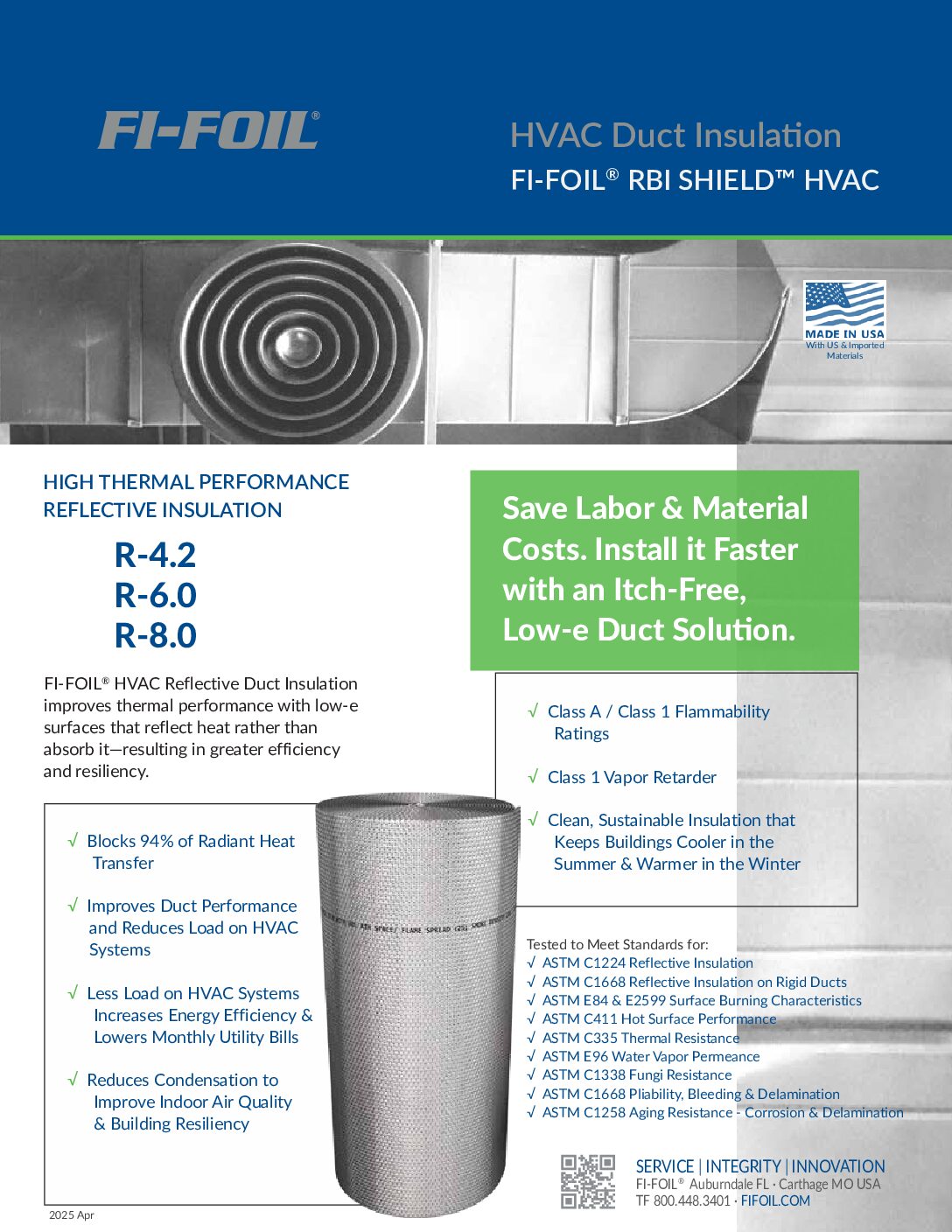

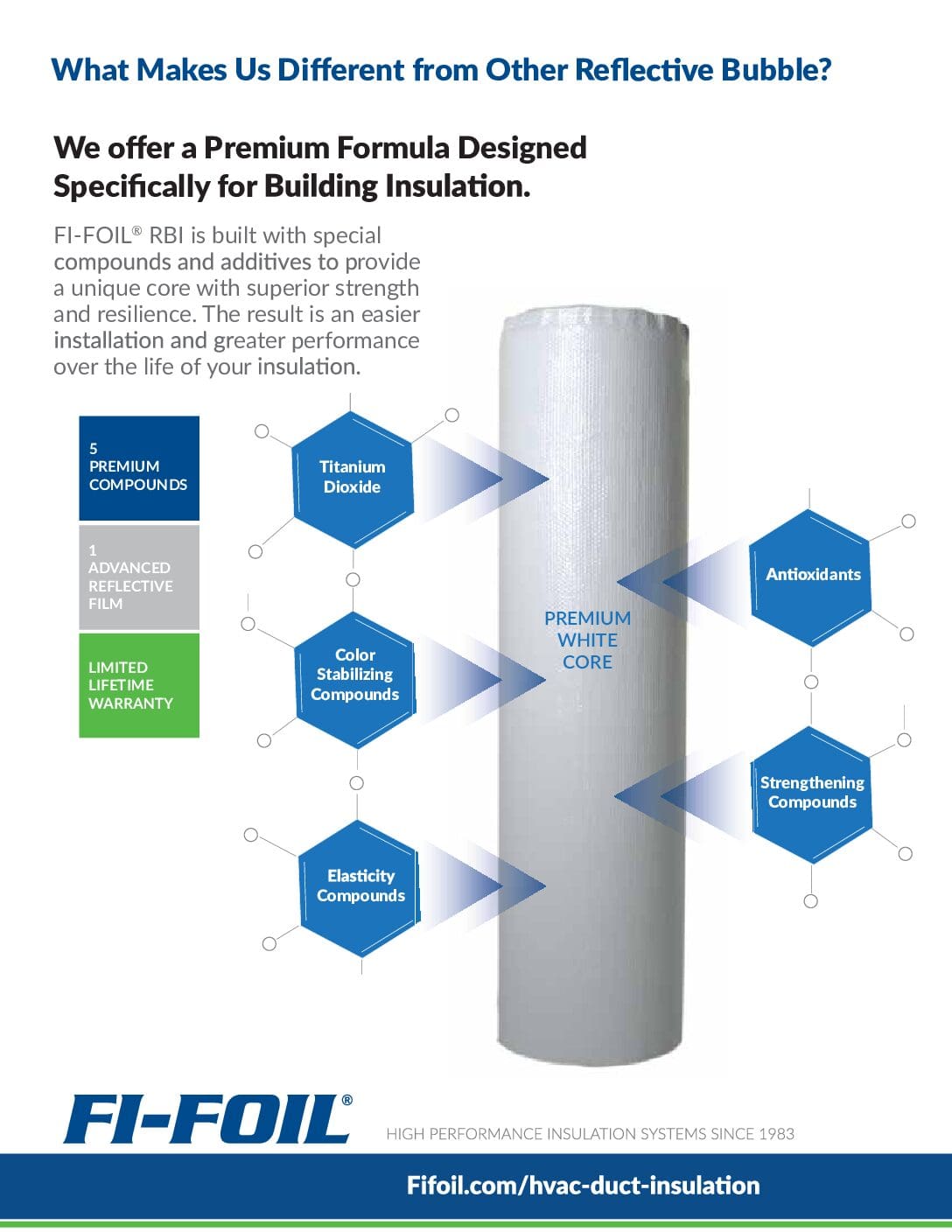

  • RBI Shield™ HVAC Product Brochure

    293 KB | PDF

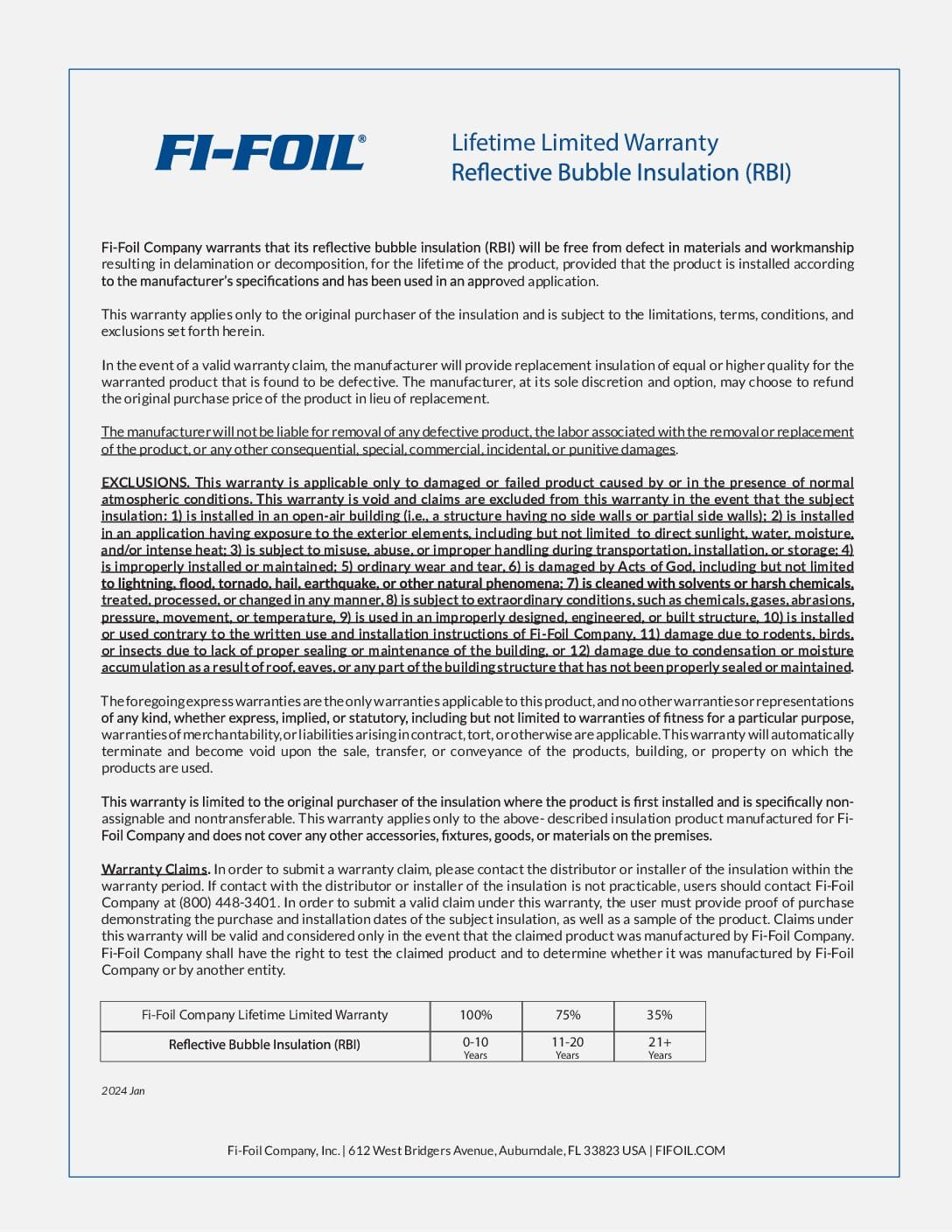

  • RBI Shield™ HVAC Lifetime Limited Warranty

    309 KB | PDF

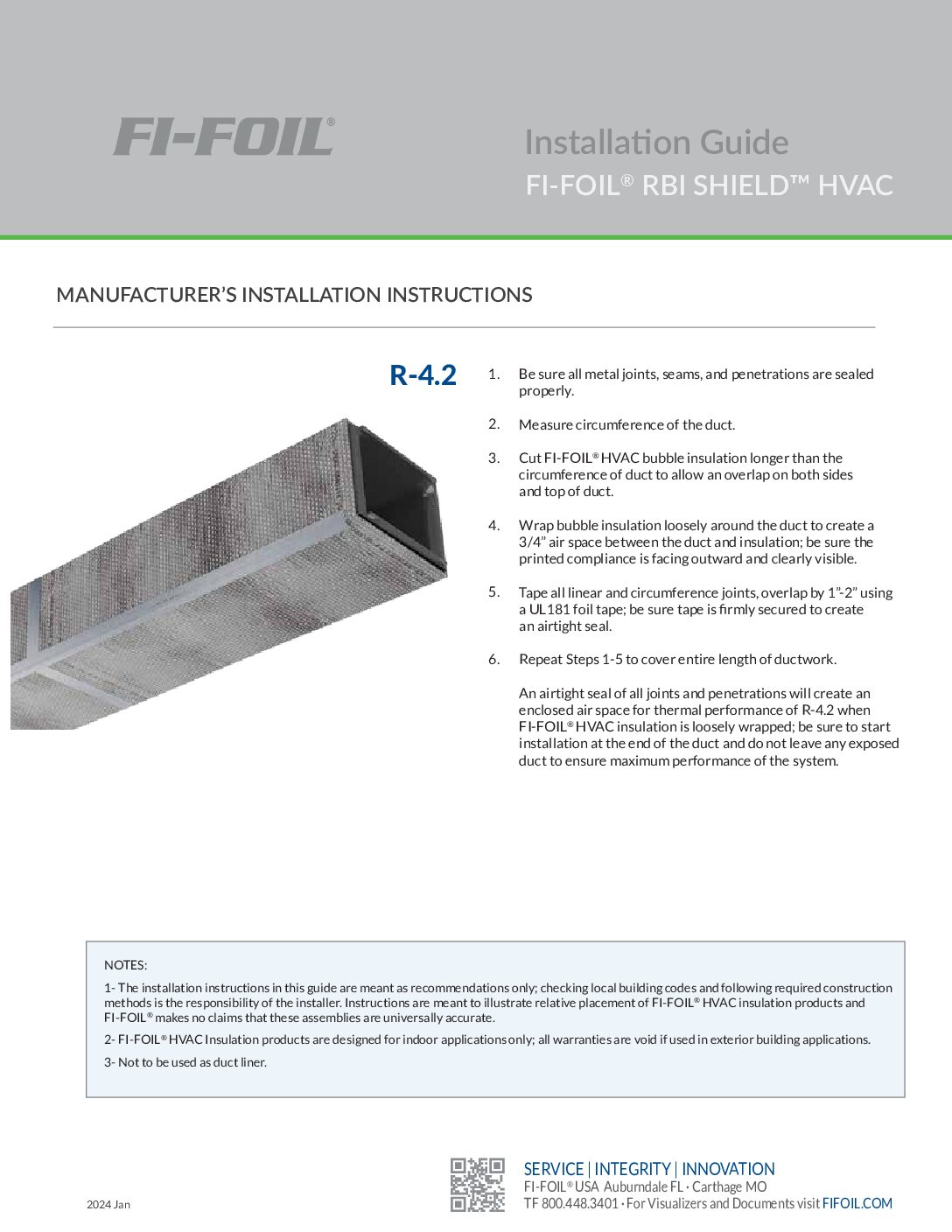

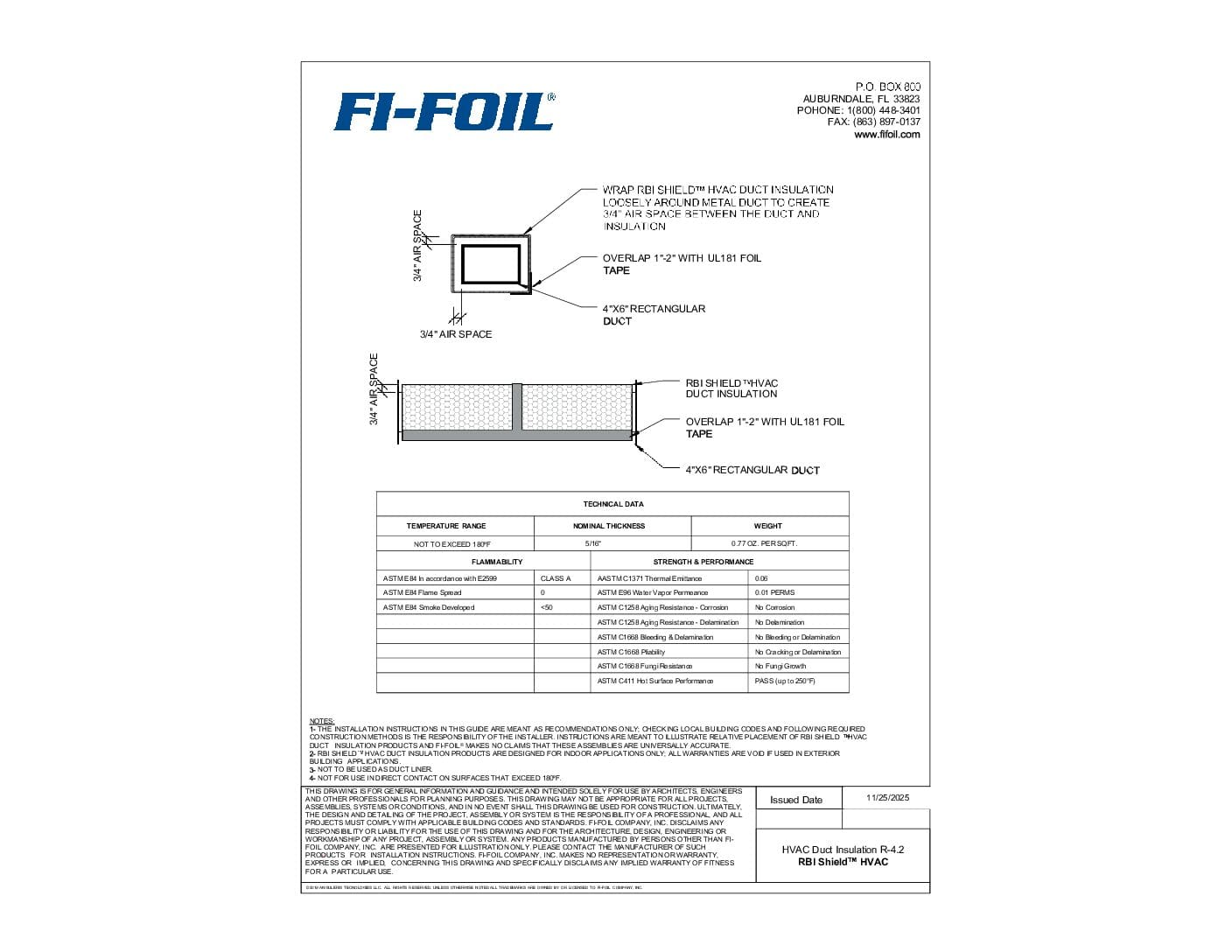

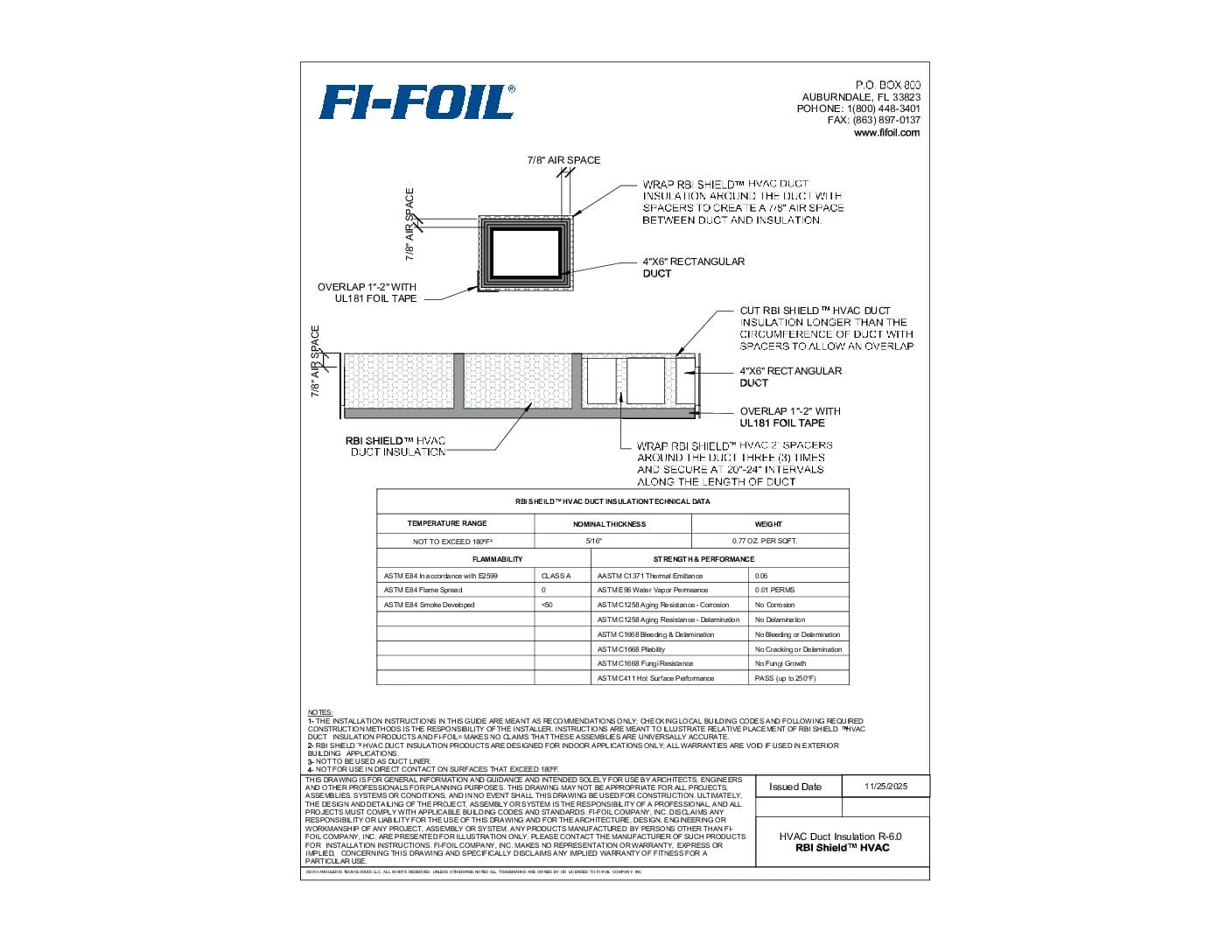

  • RBI Shield™ HVAC Installation Sheet

    192 KB | PDF

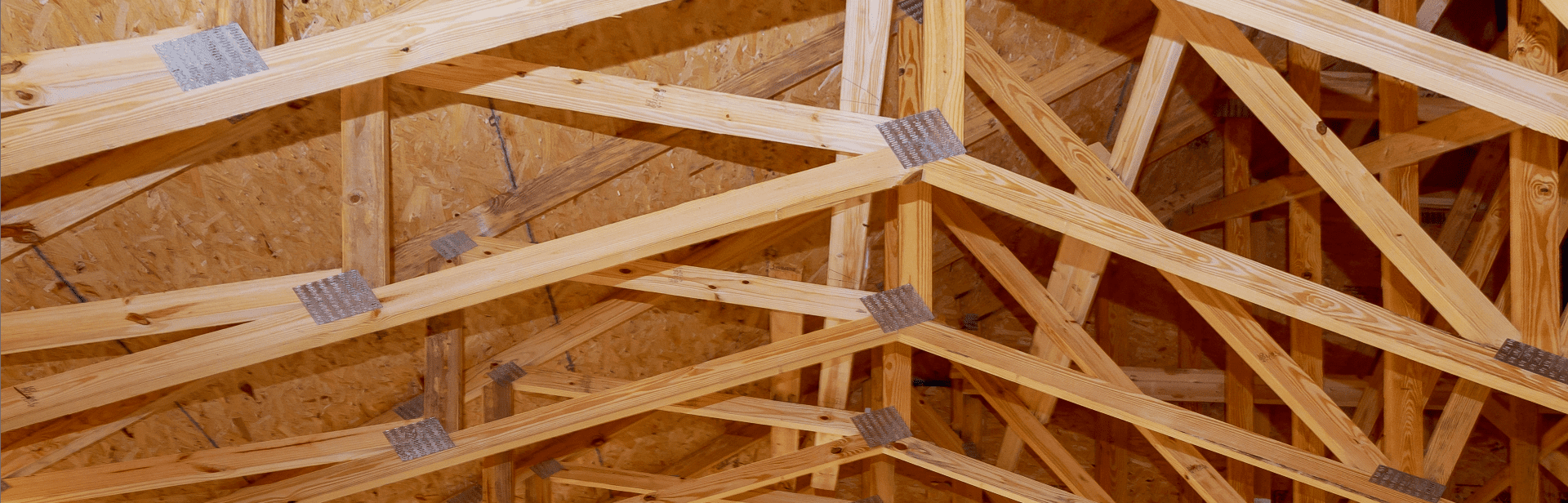

post frame building ready for reflective insulation
