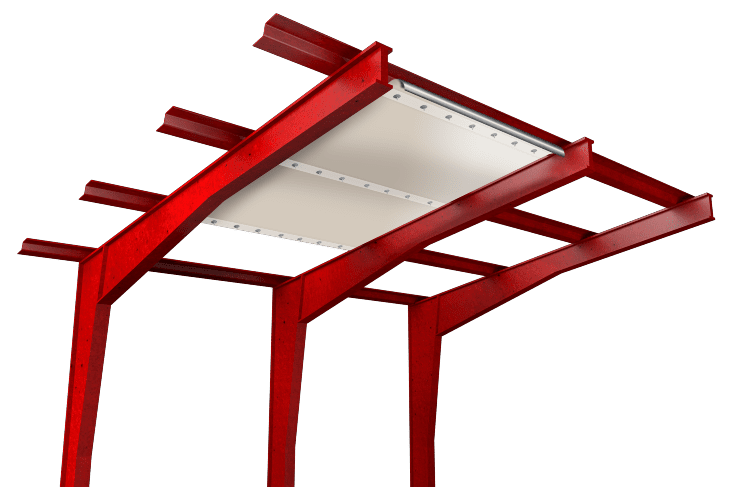

Easy to Use Metal Building Insulation for Retrofit Applications

RetroShield® is a reflective insulation solution for metal building retrofits, uniquely designed for metal and steel building structures. This system redefines retrofit insulation for existing metal buildings, offering a fast, efficient installation process that stands out among other metal building retrofit insulation systems.

Effortless Installation, Exceptional Performance

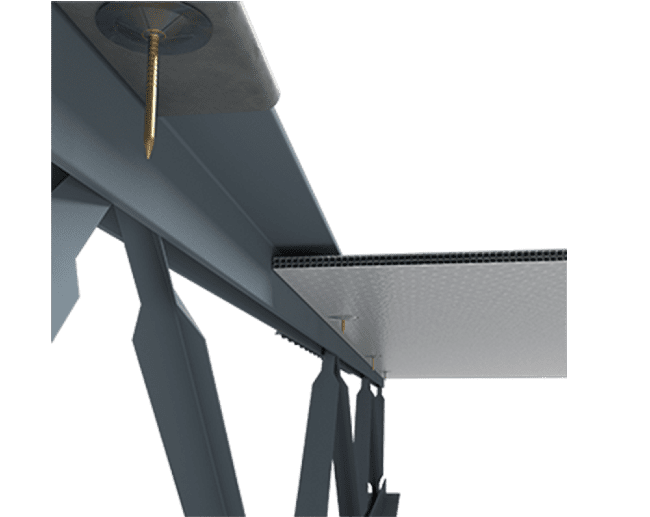

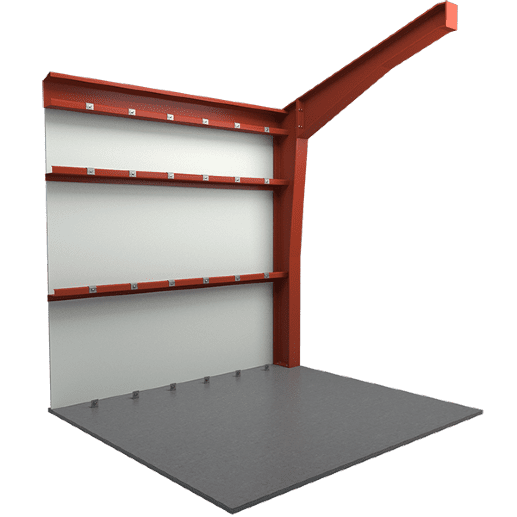

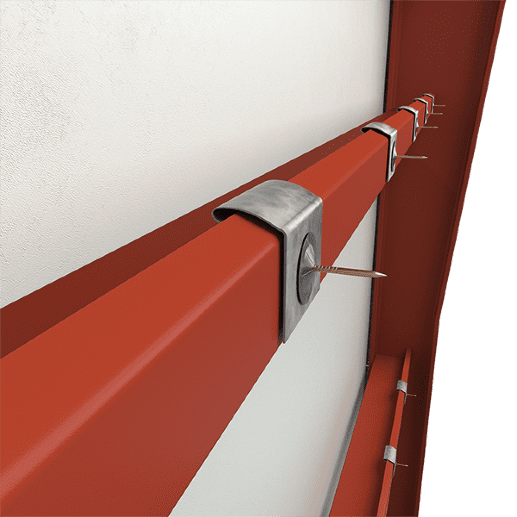

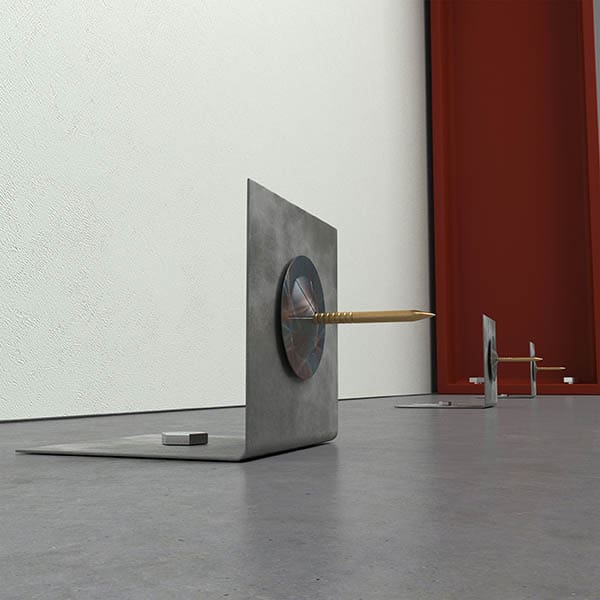

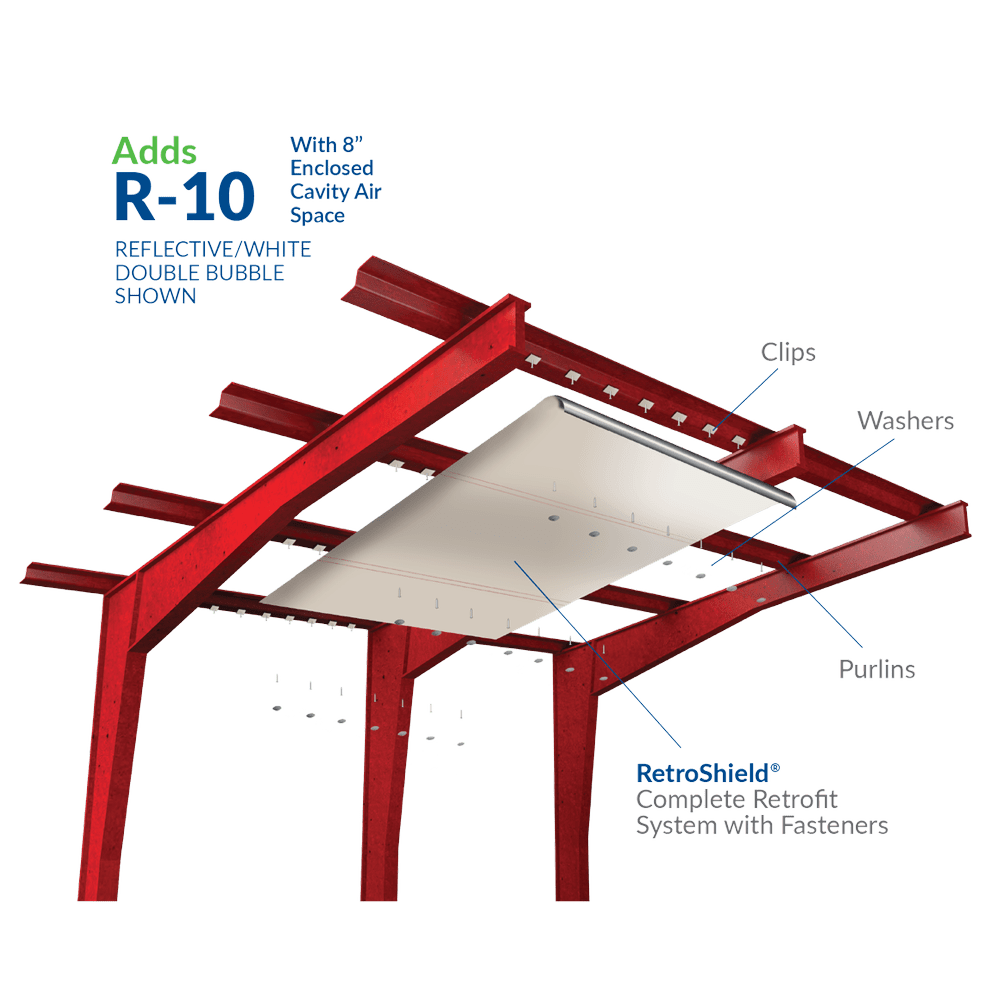

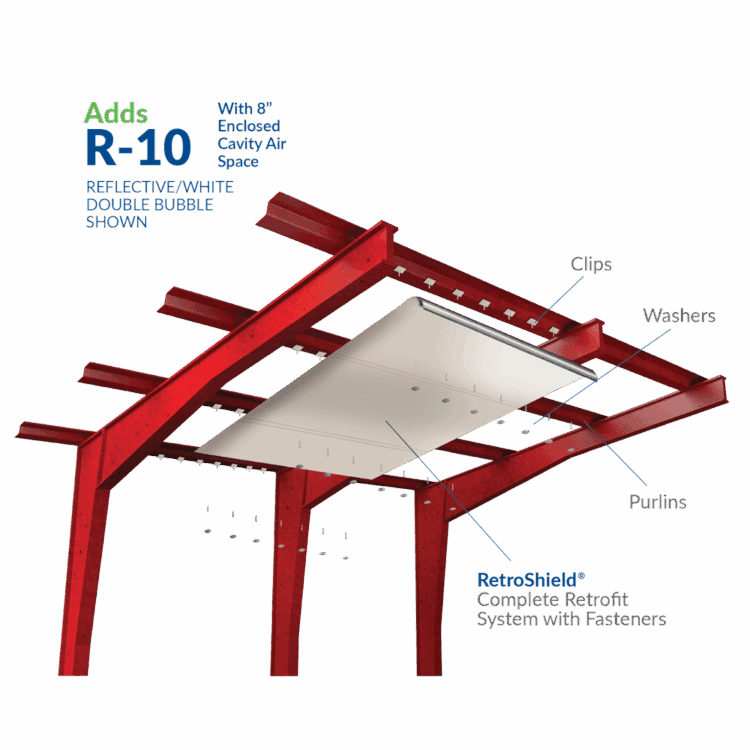

With our patented Clip & Pin technology, RetroShield® simplifies the retrofit metal building insulation process. This innovation eliminates the need for external supports, making it an ideal metal building insulation retrofit option that promises long-term stability and an aesthetically pleasing finish.

Superior Thermal Performance

RetroShield® retrofit insulation significantly enhances metal building roof and walls, reducing radiant heat transfer by 94%. This reflective insulation technology provides high reflectivity and low emissivity for superior thermal performance. The RetroShield® System offers continuous insulation and can be back-loaded with additional mass insulation for specific thermal performance or R-value requirements.

Features and Benefits of Retrofit Insulation

  • 48″, 54″, 66″, and 72″ Widths Available
  • Single or Double Bubble Versions Available
  • Moisture Resistant Material

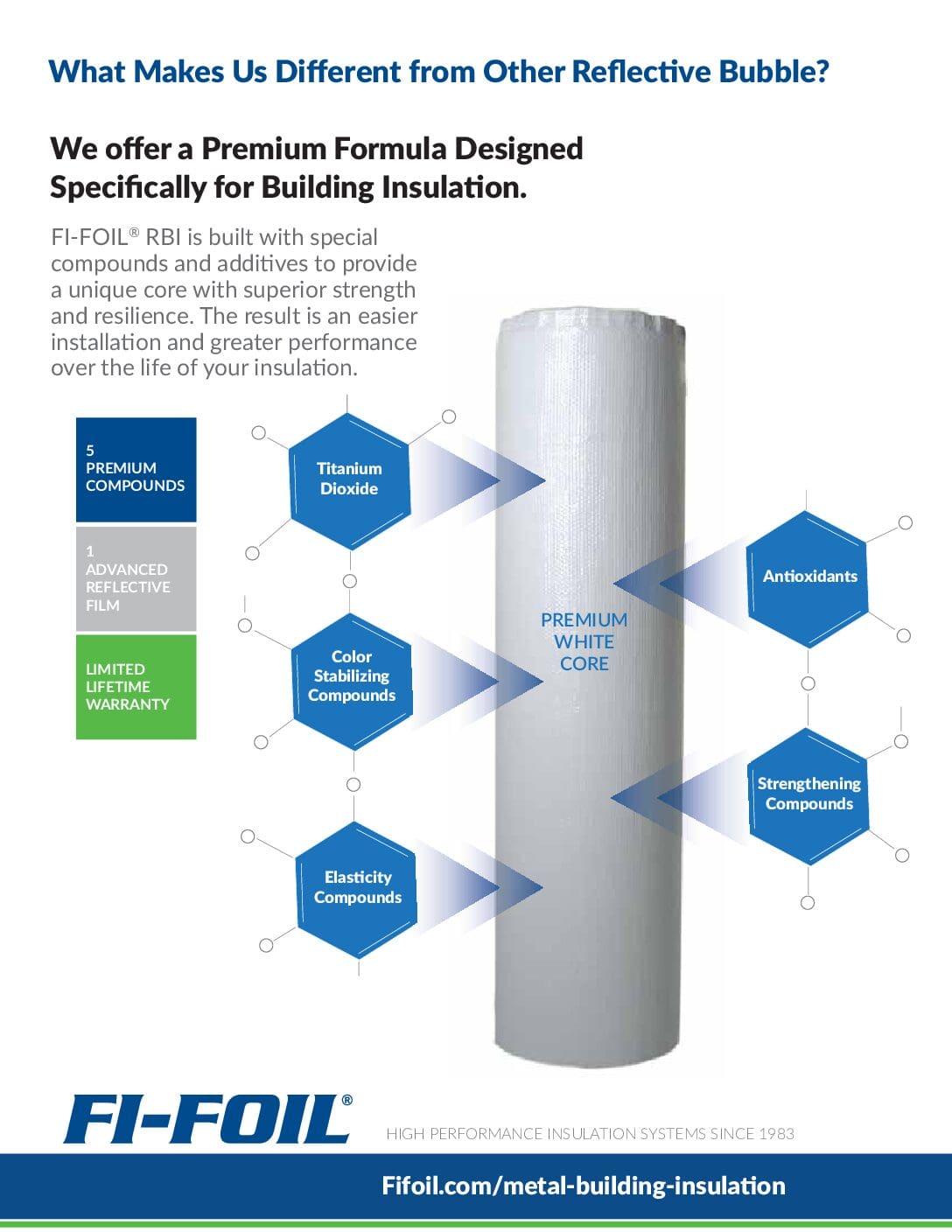

  • Contains Proprietary Blend of Strengthening & Color Stabilizing Compounds
  • Contains Antioxidants that Reduce the Impact of UV Light and Oxidation
  • Class A Flammability Rating, Reflective/Reflective option

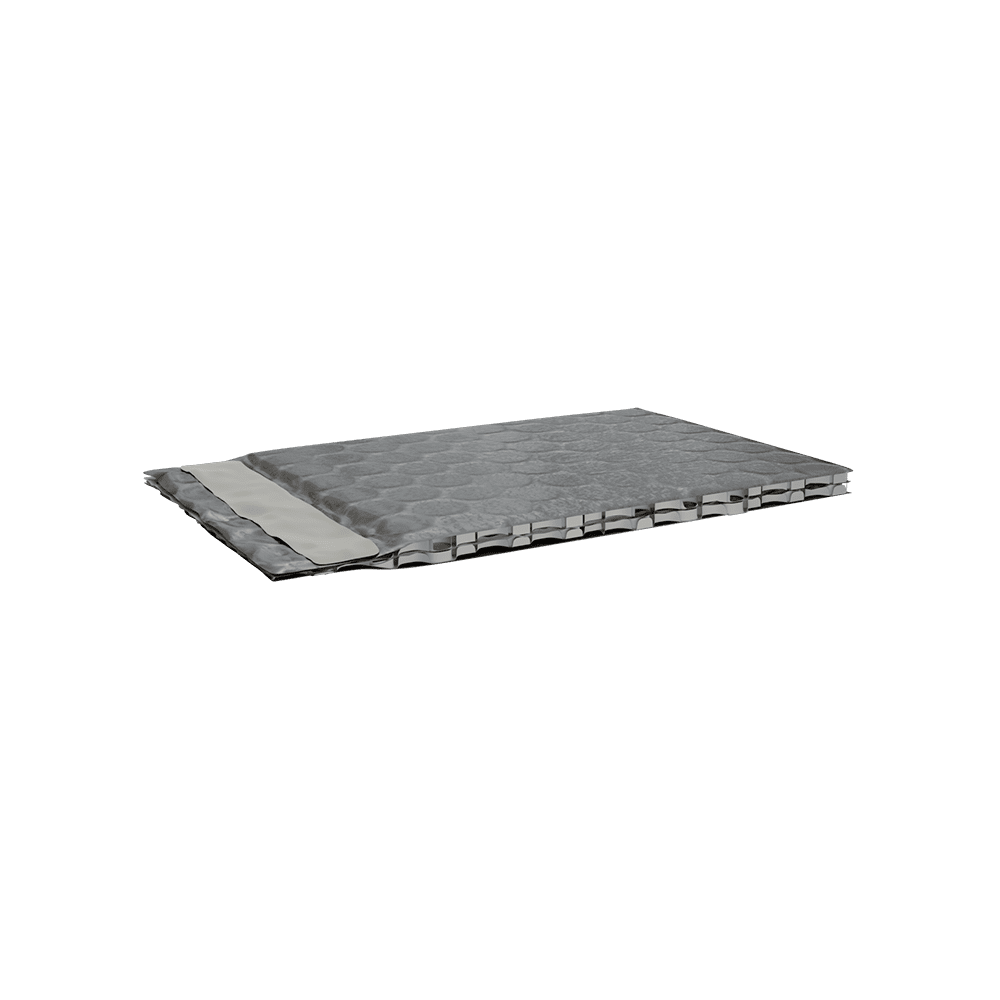

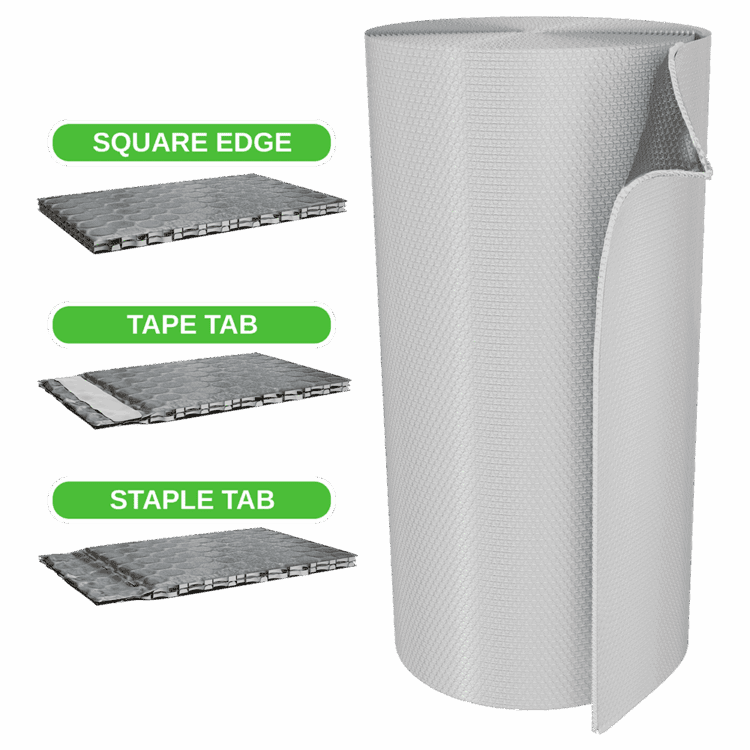

  • Integral Tap Tab Option to Seal Seams and Provide a Clean, Finished Look
  • Installer-Friendly, No Itchy Fibers
  • Less Expensive than Spray Foam
  • Can be Used Alone or Back-Loaded with Mass Insulation in Cooler Climate Zones
  • Reduces Condensation

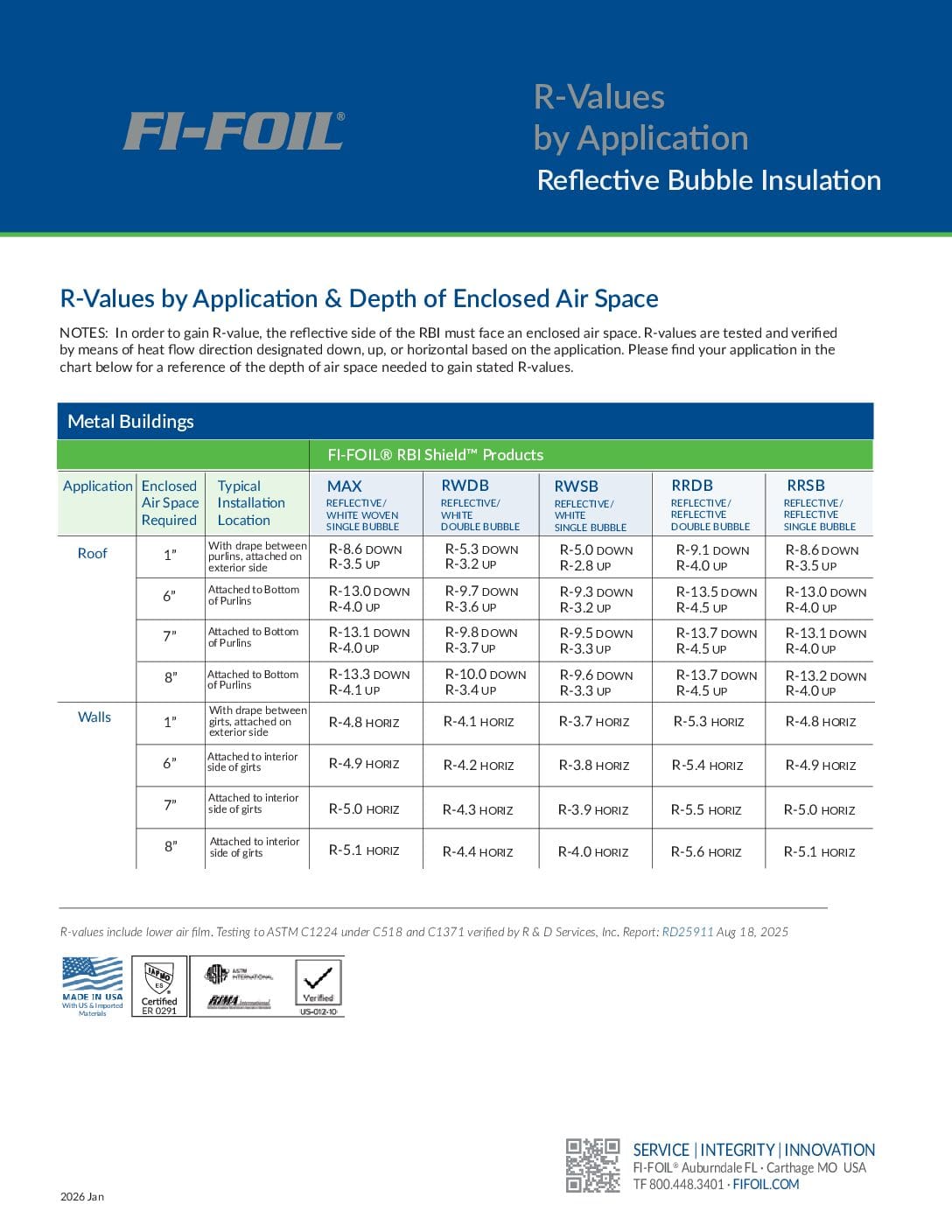

  • Add up to R-16 with 6″ Enclosed Cavity
  • Adds Thermal Performance & Comfort, Year-Round
  • Stops 95% of Radiant Heat Transfer
  • Saves Energy to Reduce Operating Costs
  • R&D Formulated With A Premium White Polymer Facing
  • Doubles as An Attractive Ceiling
  • Brightens the Workspace
  • No Cracking, Peeling, Pitting, Chalking or Discoloration
  • Best-In-Class Performance & Strength
  • Cuts to Fit and Seal Easily Around Skylights, Existing Equipment or Other Fixtures
  • Reflective Technology Keeps Buildings Cooler in the Summer, Warmer in the Winter to improve comfort with Less Load on HVAC Systems
  • Protects Your Assets
  • Lifetime Limited Warranty
  • National Network of Distributors & Contractors

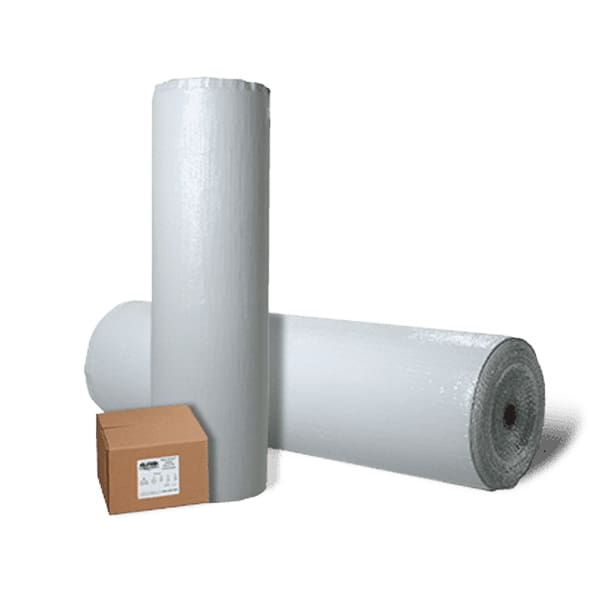

Width of Roll 54″ * 66″ 72″ 96″ *
Coverage SQFT 563 688 750 1000
Double Bubble Roll Diameter 24″ 24″ 24″ 24″
Roll Lineal Footage 125′ 125′ 125′ 125′
* Available as custom order only
Test Method Description Results
ASTM E-96 Water Vapor Permeance 0.000
ASTM D-3310 Corrosiveness No Evidence of Cracking or Pitting
ASTM C-1224-03 Section 9.5.2.4 – Pliability No Evidence of Cracking or Pitting
ASTM C-1224-03 Section 9.5.1.4 – Bleeding & Delamination No Evidence of Bleeding or Delamination
ASTM E408-71 (2002) Thermal Performance Emmisivity: 0.06
Reflectivity: 94%
Service Temperature 50 degrees F to 180 degrees F
ASTM E-84 / 2599 Flammability Class A
ASTM C-1338 Mold & Mildew Pass
Reflective / Reflective Flame Spread: 0
Smoke Development: < 50
Reflective Poly Flame Spread: 0
Smoke Development: < 50
ASTM D 638-01 Tensile Strength MD 38.9 lb/in
Tensile Strength TD 27.6 lb/in
Tear Strength MD 6.9 lbf
Tear Strength TD 7.3 lbf
Compression Strength 279 lbf

Product Compliances

  • Meets or Exceeds ASTM C-1224-03 Standard Specification of Reflective Insulation
  • Meets International Building, Residential and Energy Codes
  • Meets Florida Building, Residential and Energy Conservation Codes

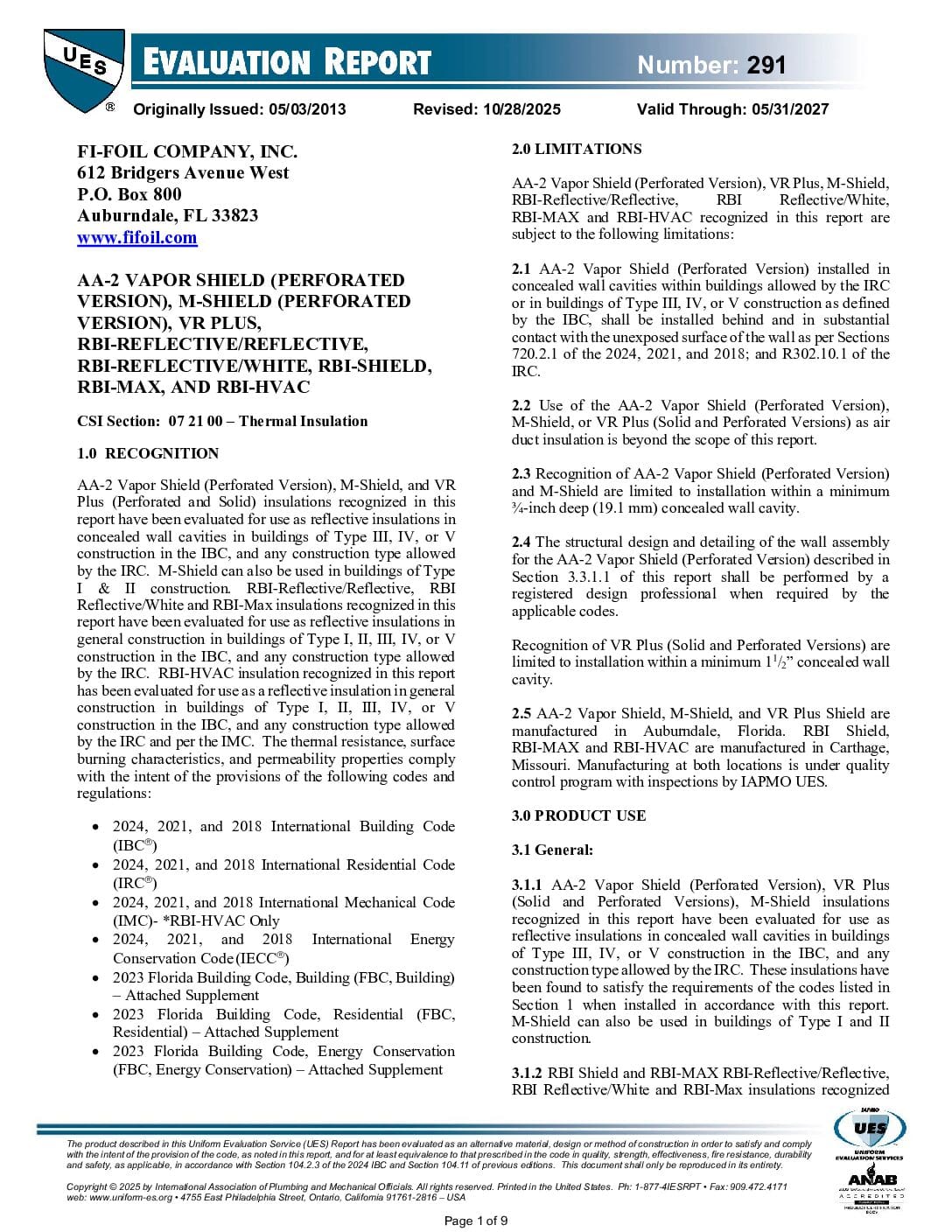

  • IAPMO Evaluation Report 0291

TECHNICAL DOCUMENTS

  • AIA MasterSpec

    185 KB | DOC





  • Retroshield® CSI 3-Part Guide Specification

    30 KB | DOCX

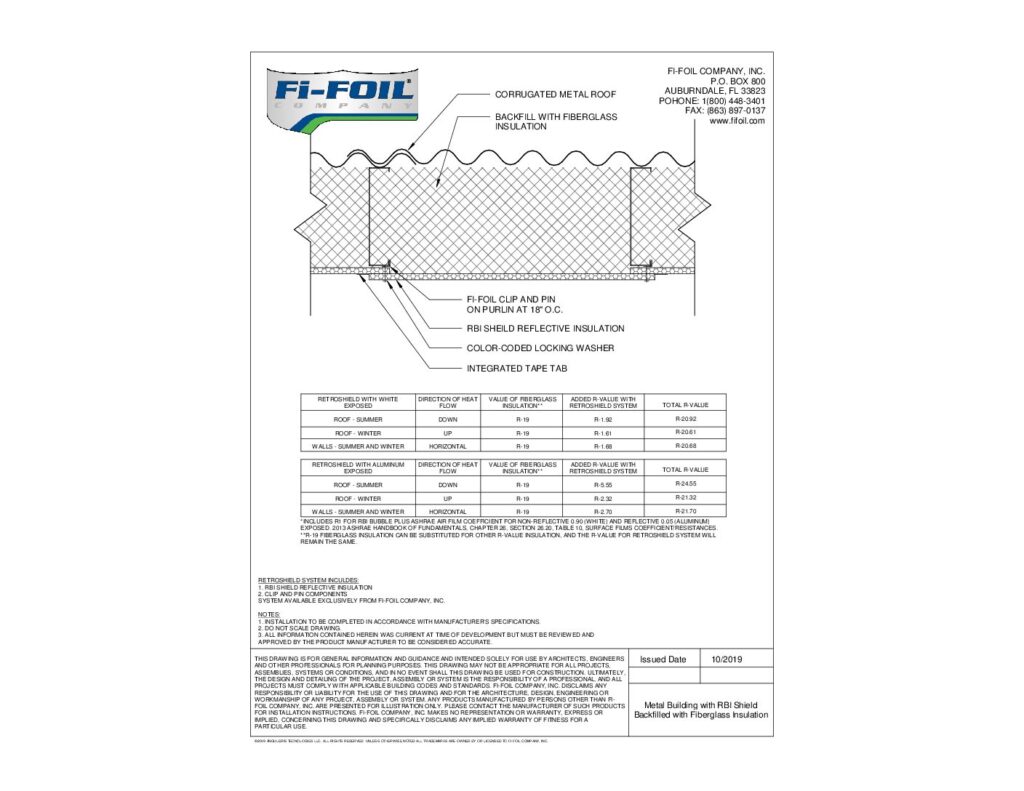

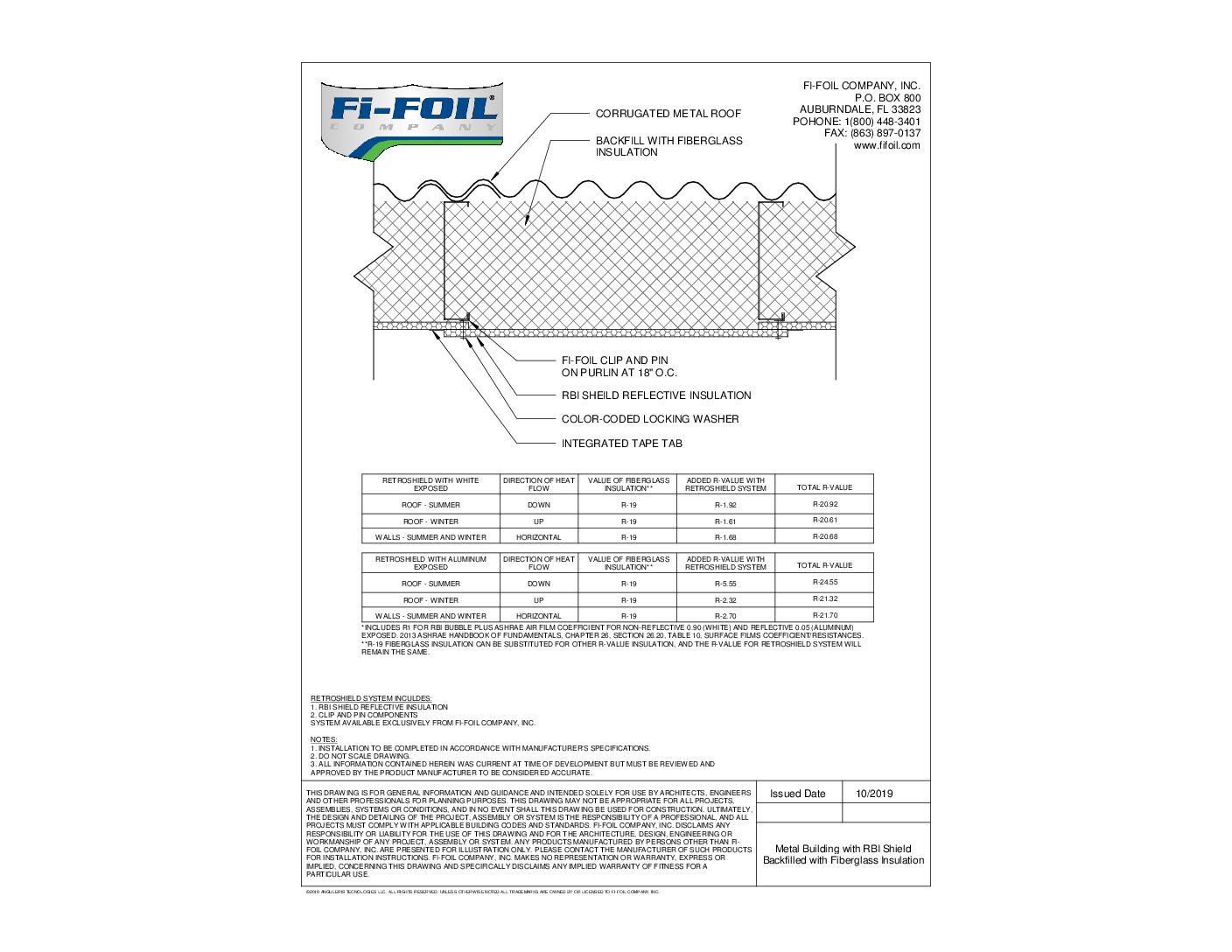

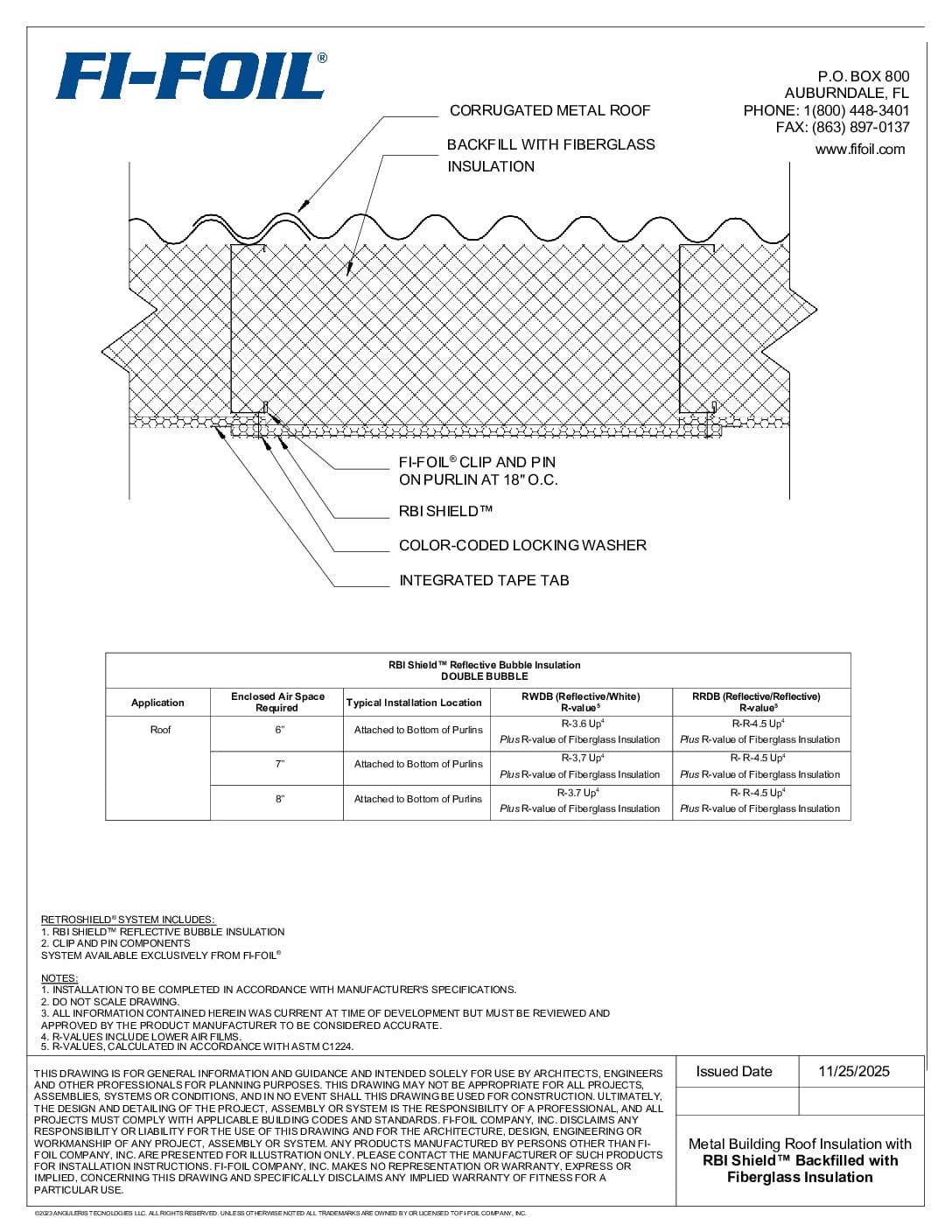

  • FI-FOIL® Metal Building Retrofit with RetroShield® Backfilled with Fiberglass [PDF]

    67 KB | PDF





  • FI-FOIL® Metal Building Retrofit with RetroShield® Backfilled with Fiberglass [RVT]

    1 MB | RVT





  • FI-FOIL® Metal Building Retrofit with RetroShield® Backfilled with Fiberglass [DWG]

    39 KB | DWG

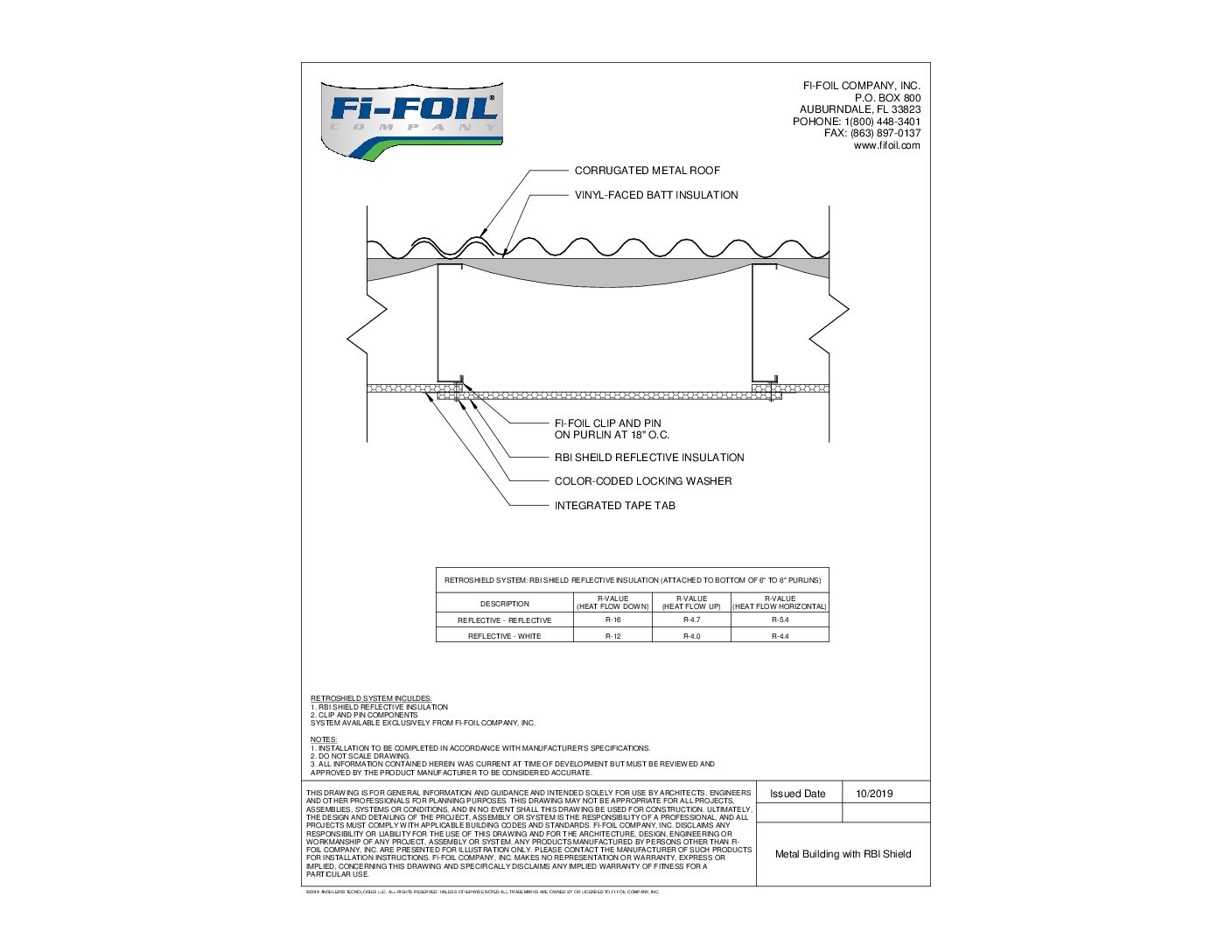

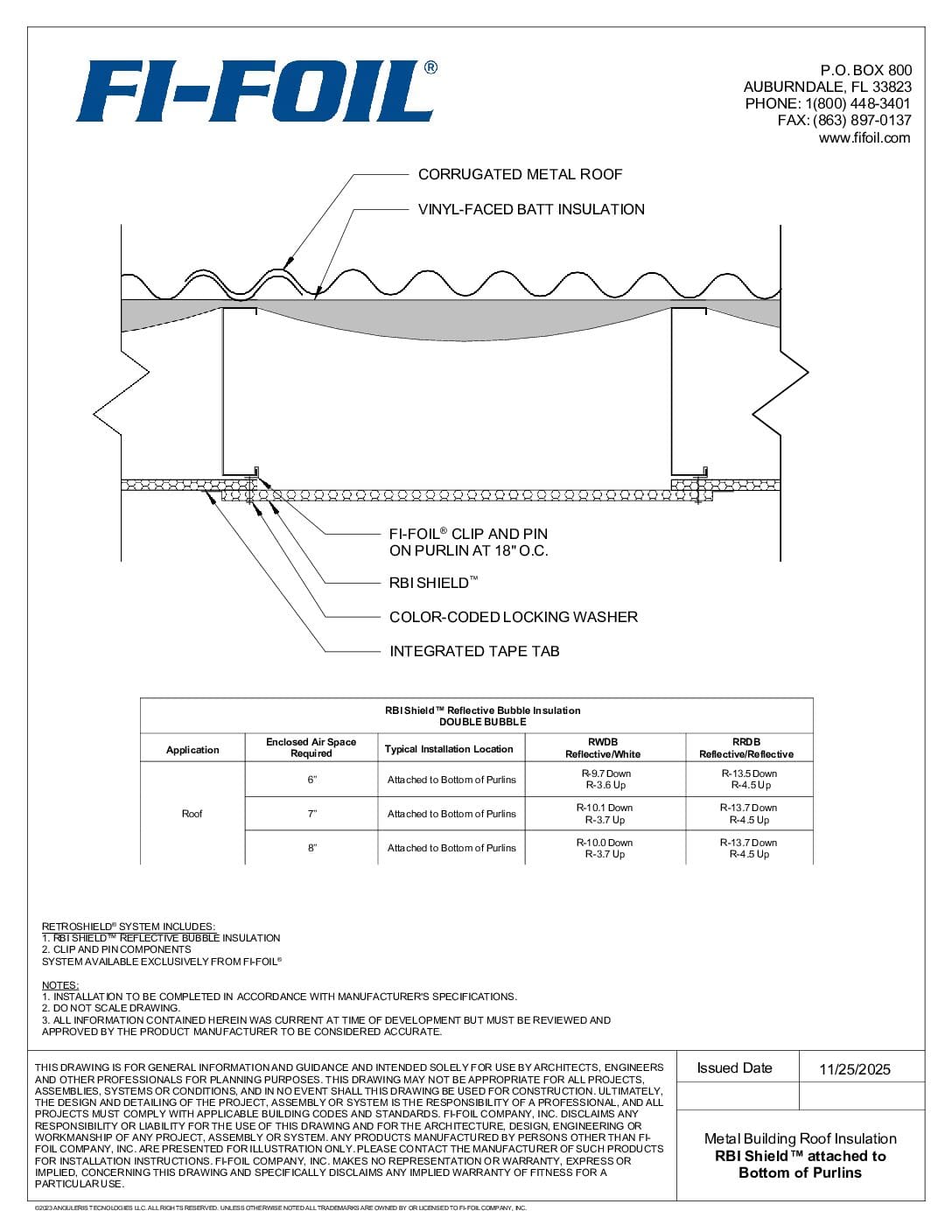

  • FI-FOIL® Metal Building Retrofit with RetroShield® Over Vinyl-Faced Batt [PDF]

    63 KB | PDF




  • FI-FOIL® Metal Building Retrofit with RetroShield® Over Vinyl-Faced Batt [RVT]

    1 KB | RVT





  • FI-FOIL® Metal Building Retrofit with RetroShield® Over Vinyl-Faced Batt [DWG]

    36 KB | DWG

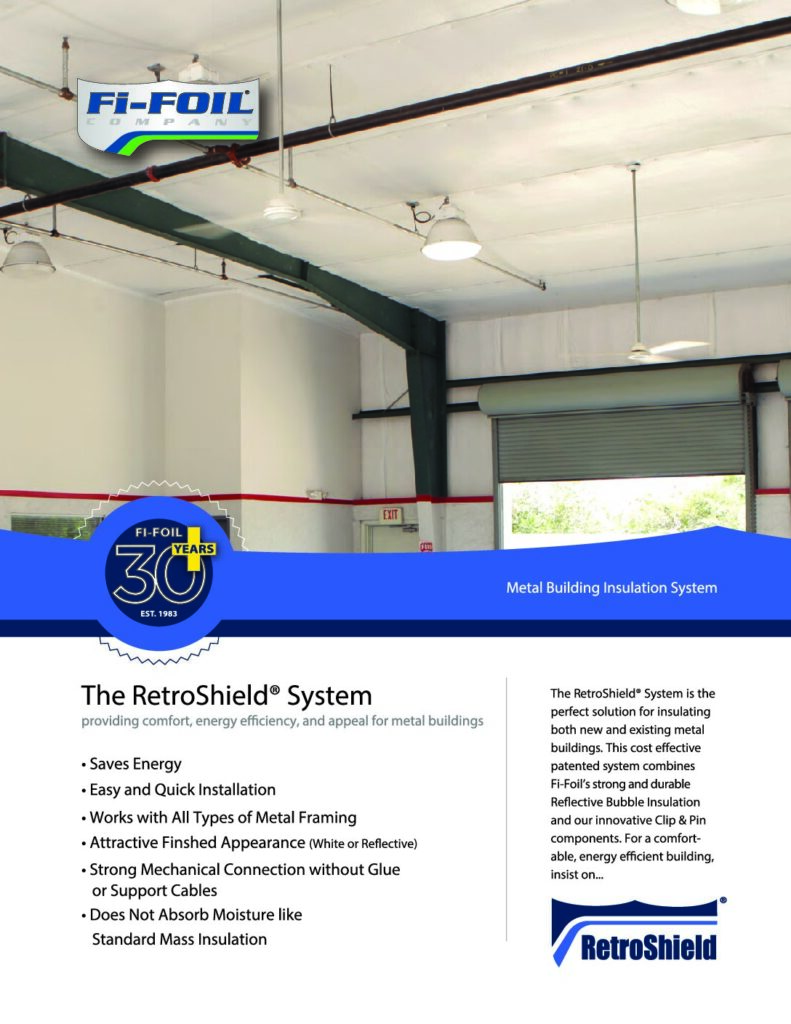

  • RetroShield® Application Sheet

    24 MB | PDF

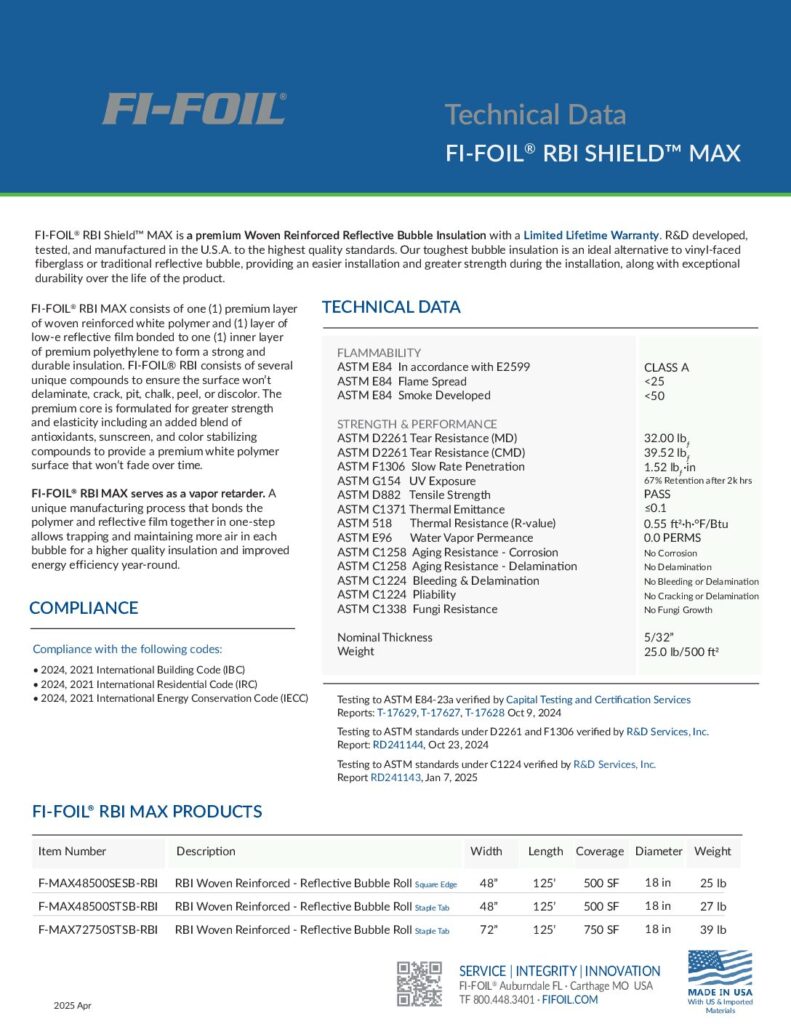

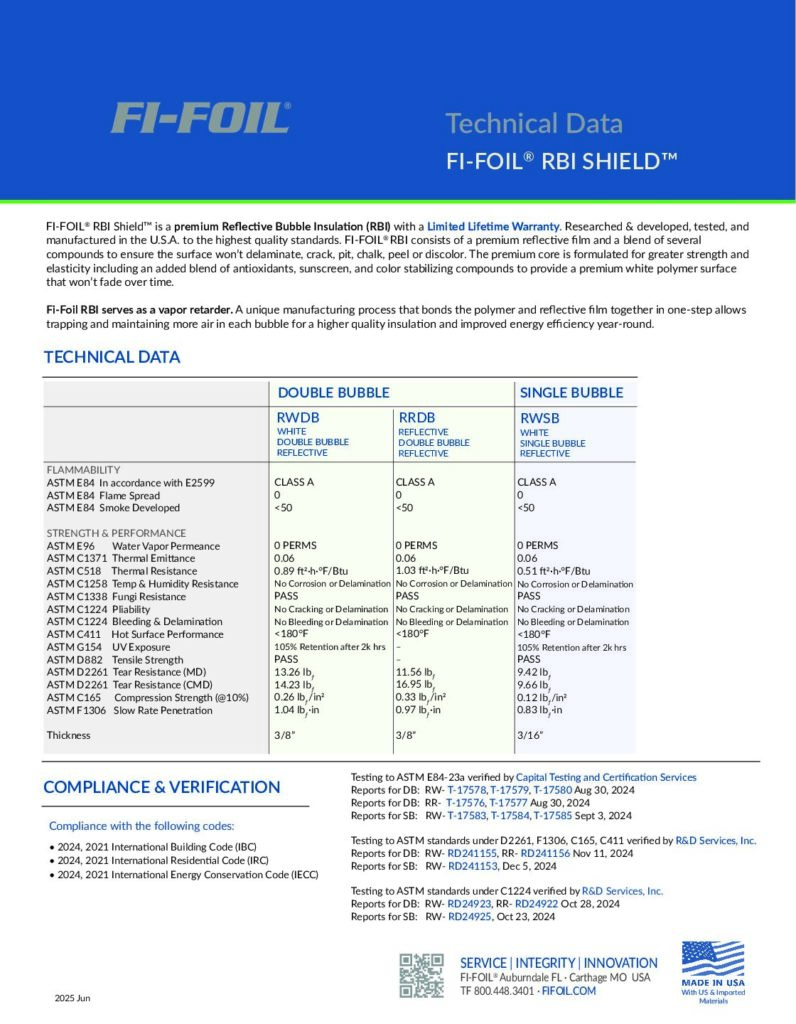

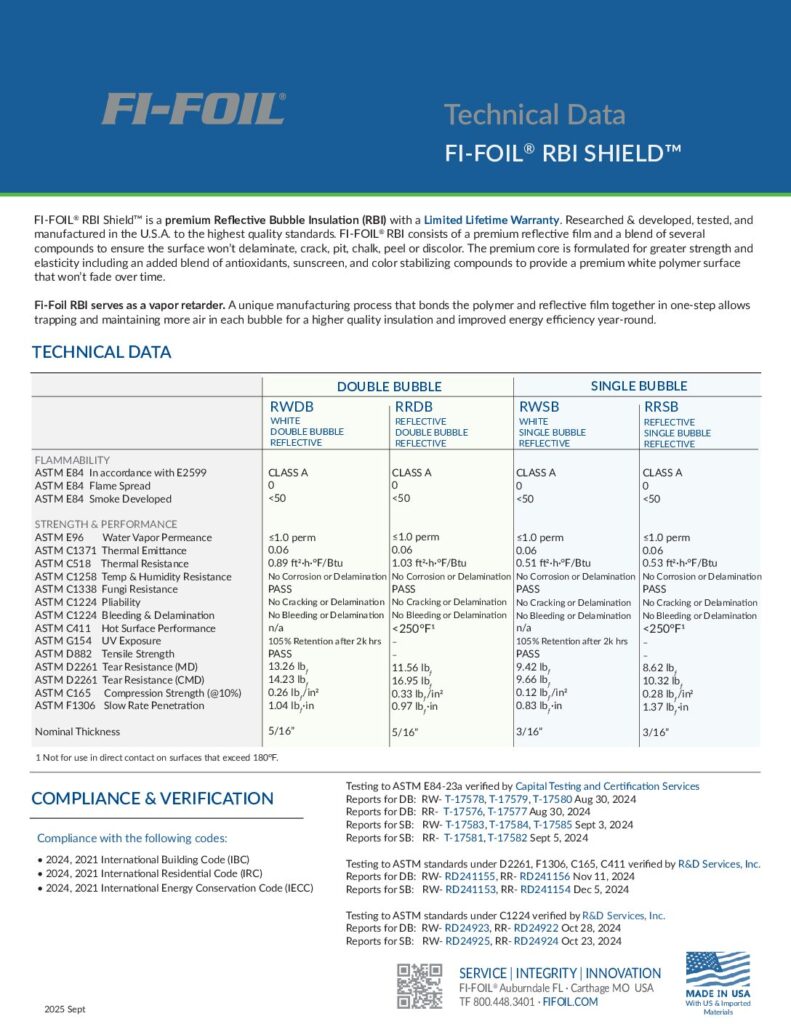

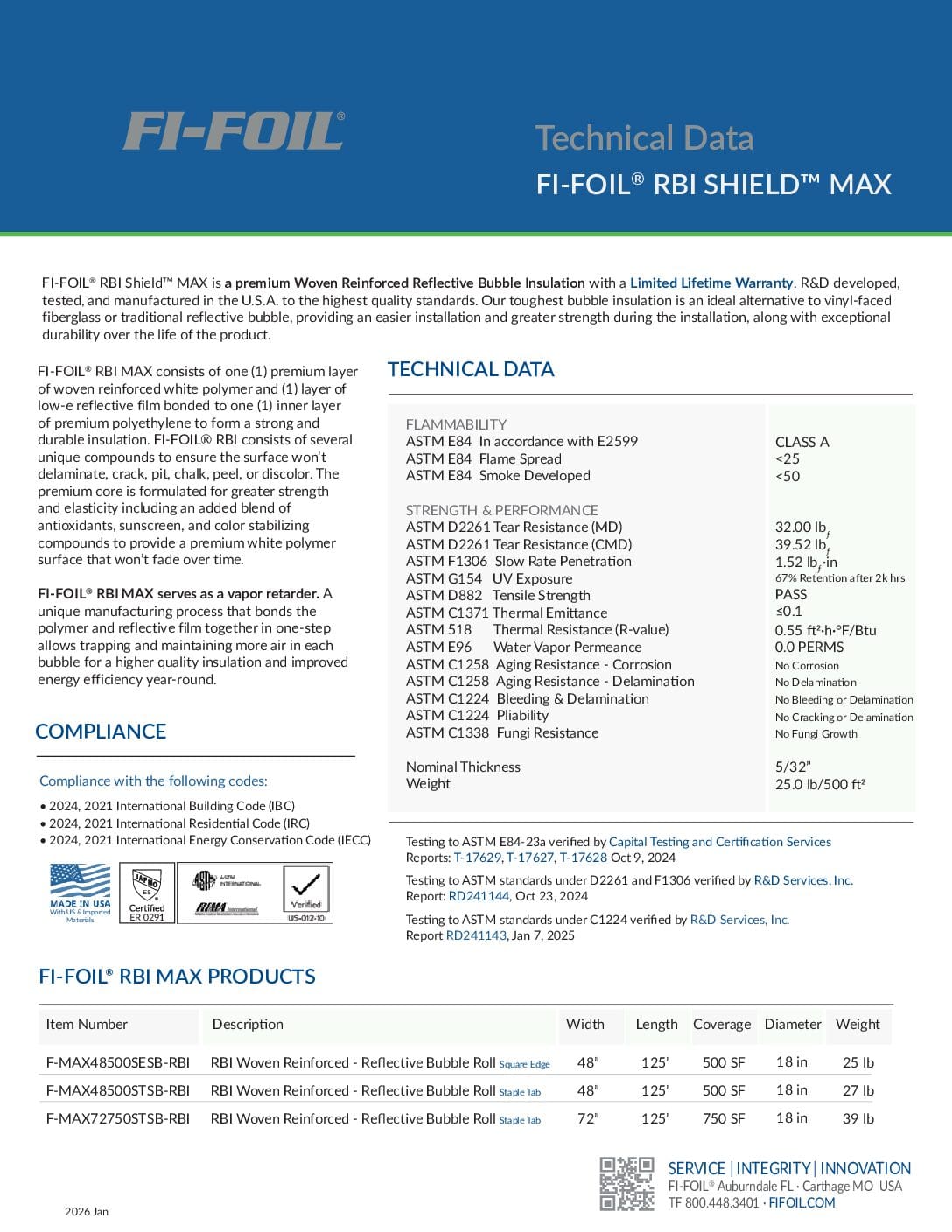

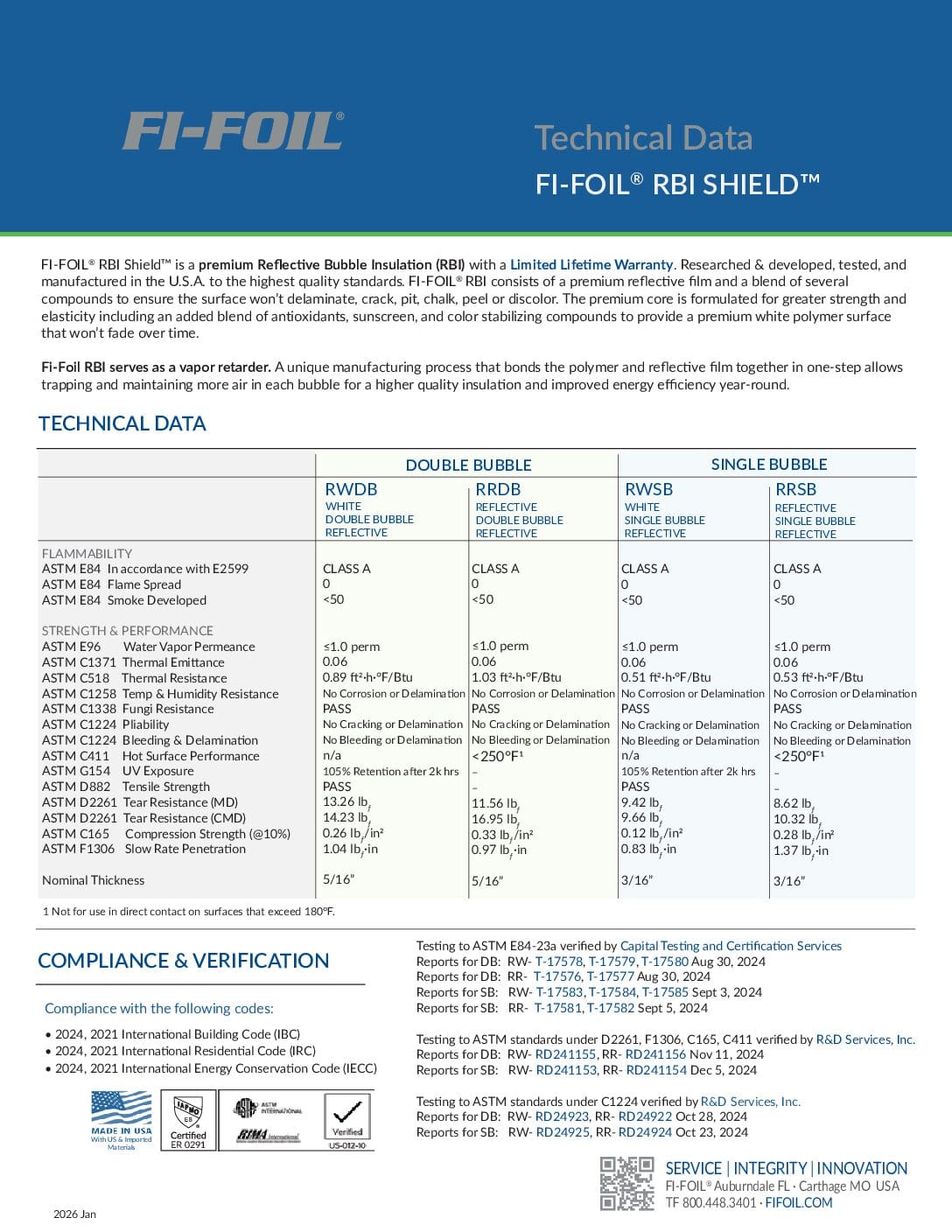

  • RetroShield® Specification Sheet

    1 MB | PDF





  • RetroShield® Safety Data Sheet

    157 KB | PDF

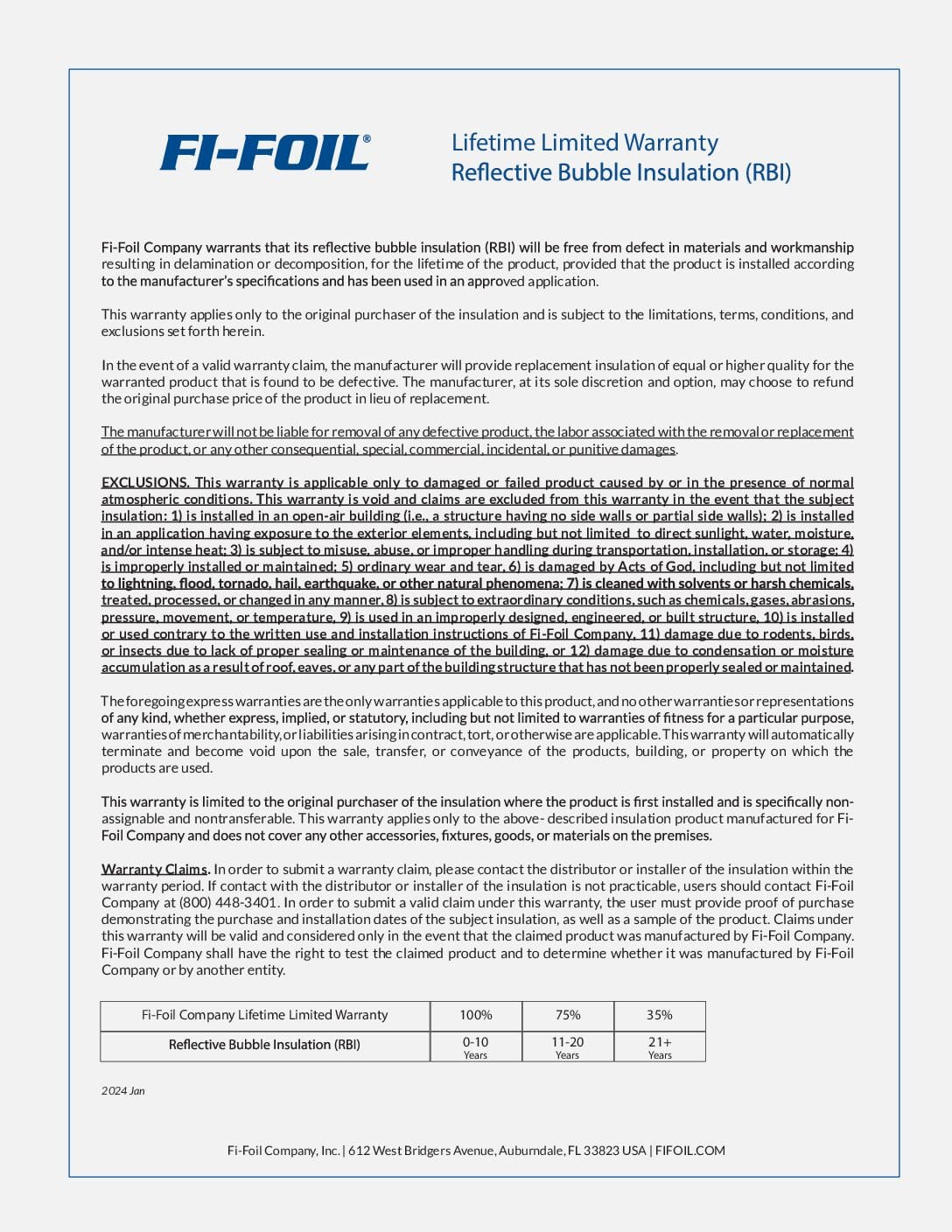

  • RetroShield® Lifetime Limited Warranty

    157 KB | PDF

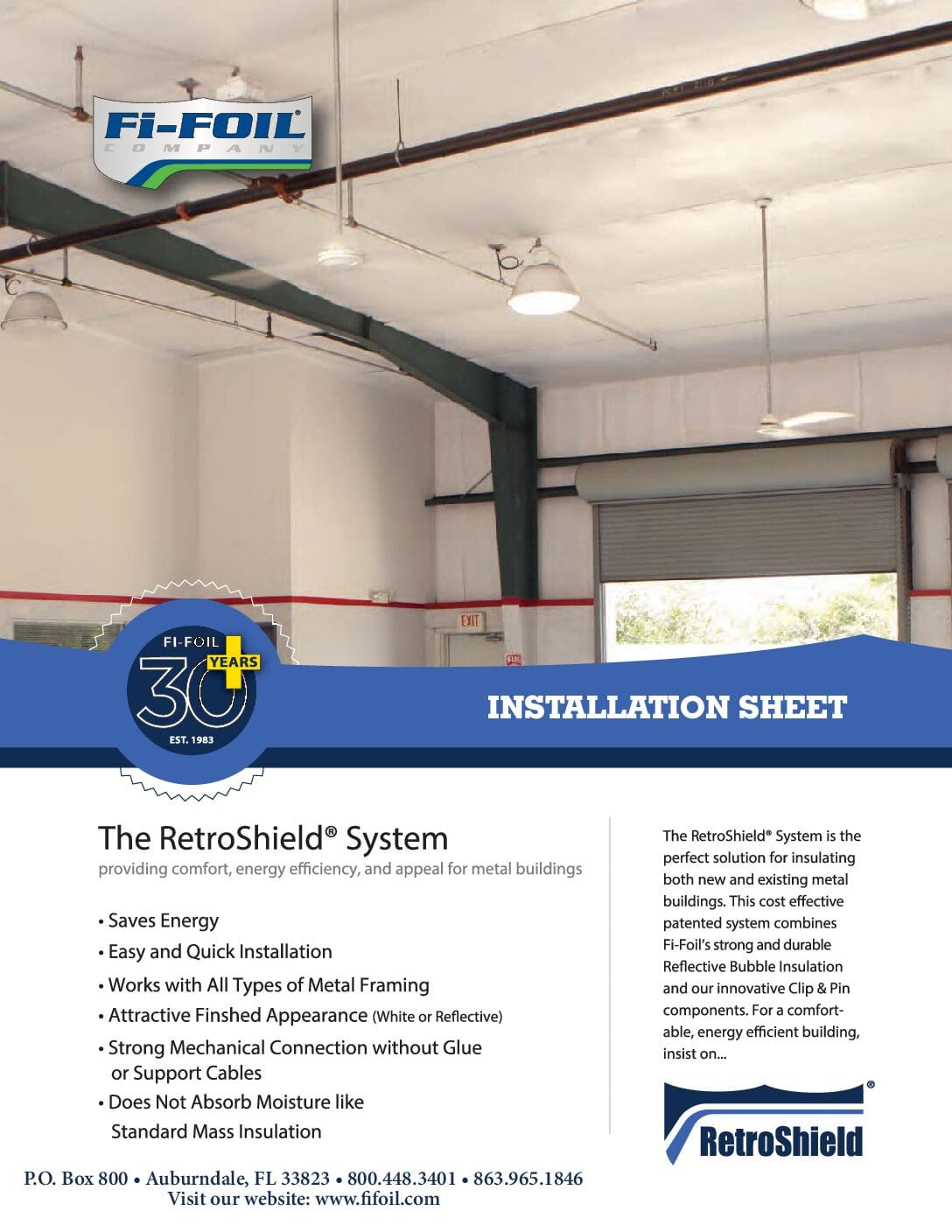

  • RetroShield® Installation Sheet

    157 KB | PDF





  • Florida Commercial Building Code 2020 – FAQs

    232 KB | PDF





  • Florida Residential Building Code 2020 – FAQs

    203 KB | PDF





IDEAL ADDITIONAL BUILDING APPLICATIONS FOR REFLECTIVE INSULATION

farm building suitable for reflective insulation

Boost Efficiency with a Superior Reflective Bubble Insulation for Agricultural Buildings

Cattle Barns
Chicken Farms
Large Scale Chicken Housing
Other Livestock Buildings

energy efficient commercial building using reflective insulation

Optimize Your Buildings Energy Savings with High-Performance Reflective Bubble Insulation for Commercial Buildings

Gymnasiums
Metal Roof Buildings
Single and Multi-Family Housing
Commercial or Residential Pole Barns

industrial buildings using reflective insulation

Reflective Bubble Insulation Can Help Maximize the Operational Costs and Efficiency in Your Industrial Buildings

Aircraft Hangers
Military Buildings
Other Industrial Applications

FREQUENTLY ASKED QUESTIONS

Condensation will occur on any surface when the temperature of the surface is at or below the “dew-point temperature” for an air-water mixture. The dew-point temperature depends on the dry-bulb temperature (measured with an ordinary thermometer) and the relative humidity in the space next to the surface. The dew-point temperature is less than or equal to the dry-bulb temperature. The two temperatures are equal when the relative humidity is 100%. Some examples of dew-point temperature:

Temperature

As you can see, condensation can occur when the outside temperature is cold. Insulation below a roof deck will have an inside surface temperature that is above the roof surface temperature. The actual temperature of the inside surface depends on the amount of thermal resistance between the roof and the inside surface. The higher the resistance, the closer the interior surface temperature will be to the inside air temperature. Maintaining a reasonable inside relative humidity (less than 60%) is an important factor in preventing condensation.

Yes. The ASHRAE Handbook values are a subset of data from the National Bureau of Standards (NBS).
