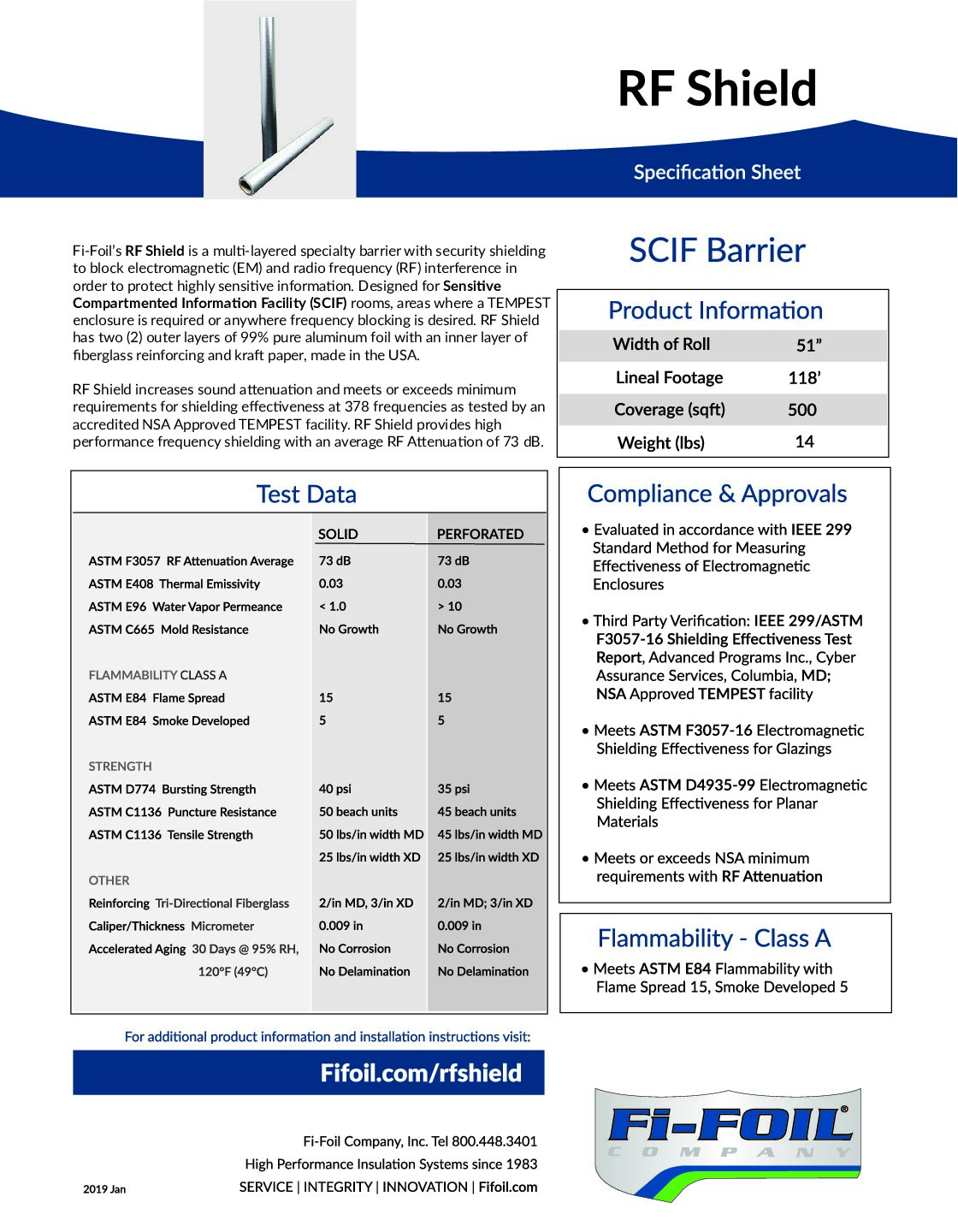

Fi-Foils RF Shield is a multi-layered specialty barrier with security shielding to block electromagnetic (EM) and radio frequency (RF) interference in order to protect highly sensitive information. Designed for Sensitive Compartmented Information Facility (SCIF) rooms, areas where a TEMPEST enclosure is required or anywhere frequency blocking is desired.

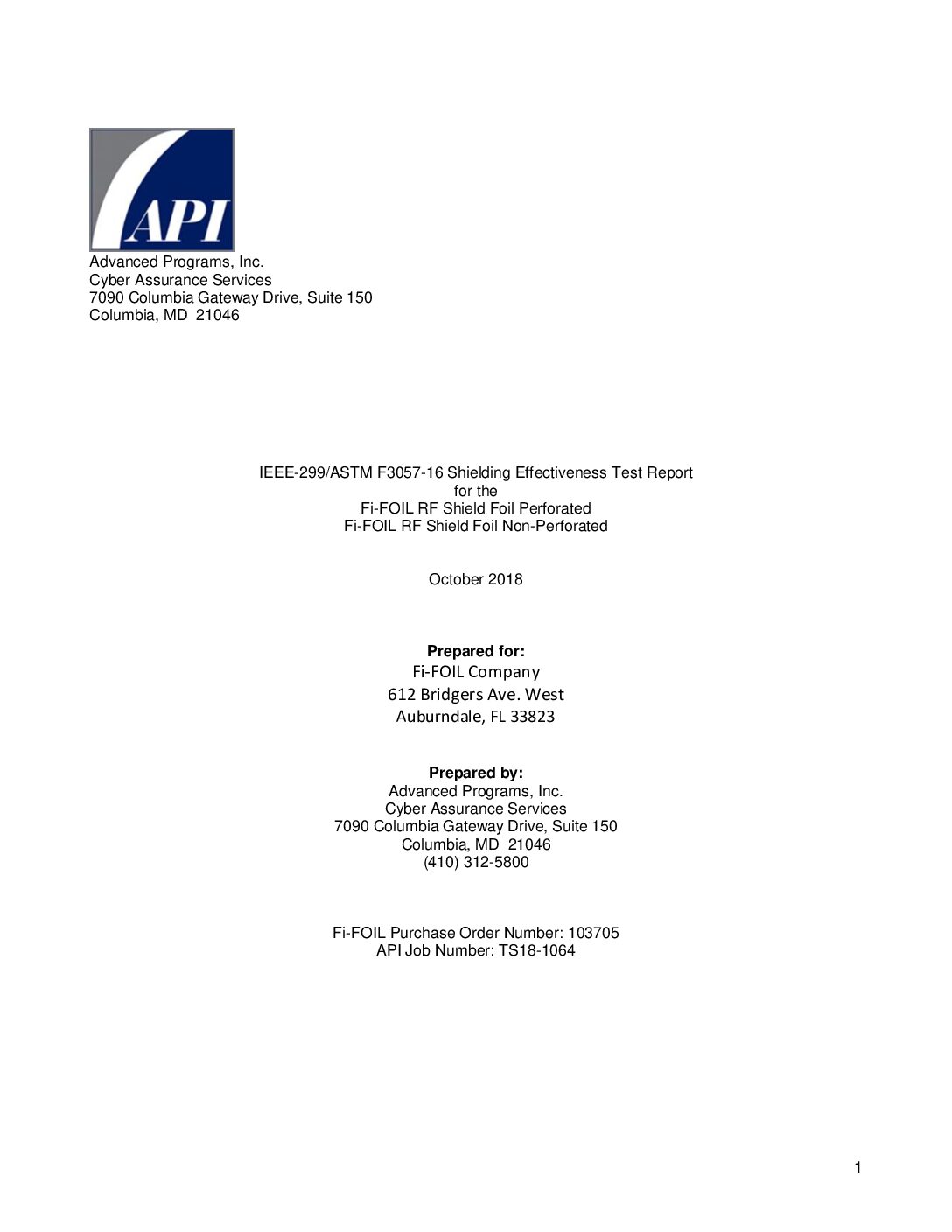

The RF shielding material has two (2) outer layers of 99% Pure Aluminum Foil with an inner layer of Fiberglass reinforcing and Kraft paper, made in the USA. RF protection increases sound attenuation and meets or exceeds minimum requirements for shielding effectiveness at 378 frequencies as tested by an accredited NSA Approved TEMPEST facility. RF Shield provides high performance frequency shielding with an average RF Attenuation of 73 dB.
Compliance and Approvals:
• Meets ASTM F3057-16 Electromagnetic Shielding Effectiveness for Glazings
• Meets ASTM D4935-99 Electromagnetic Shielding Effectiveness for Planar Materials
• Meets or exceeds NSA minimum requirements with RF Attenuation
• Meets ASTM E84 Flammability with Flame Spread 15, Smoke Developed 5"
• Meets ASTM F3057-16 Electromagnetic Shielding Effectiveness for Glazings
• Meets ASTM D4935-99 Electromagnetic Shielding Effectiveness for Planar Materials
• Meets or exceeds NSA minimum requirements with RF Attenuation
• Meets ASTM E84 Flammability with Flame Spread 15, Smoke Developed 5
Width of Roll | 51" | |||
Lineal Footage | 118' | |||
Coverage (sqft) | 500 | |||
Weight (lbs) | 14 |
Test Method | Description | Results |
---|---|---|
ASTM F3057 | RF Attenuation Average |
Solid - 73 dB Perforated - 73 dB |
ASTM E408 | Thermal Emissivity |
Solid - 0.03 Perforated - 0.03 |
ASTM E96 | Water Vapor Permeance |
Solid - < 1.0 Perforated > 10 |
ASTM C665 | Mold Resistence |
Solid - No Growth Perforated - No Growth |
ASTM E84 | Flammability Rating | CLASS A |
ASTM E84 | Flame Spread |
Solid - 15 Perforated - 15 |
ASTM E84 | Smoke Developed |
Solid - 5 Perforated - 5 |
ASTM D774 | Bursting Strength |
Solid - 40 psi Perforated - 35 psi |
ASTM C1136 | Puncture Resistance |
Solid - 50 beach units Perforated - 45 beach units |
ASTM C1136 | Tensile Strength |
Solid - 50 lbs/in width MD, 25 lbs/in width XD Perforated - 45 lbs/in width MD, 25 lbs/in width XD |
Reinforcing Tri-Directional Fiberglass |
Solid - 2/in MD, 3/in XD Perforated - 2/in MD, 3/in XD |
|
Caliper/Thickness Micrometer |
Solid - 0.009 in Perforated - 0.009 in |
|
Accelerated Aging 30 Days @ 95% RH, 120°F (49°C) |
Solid - No Corrosion, No Delamination Perforated - No Corrosion, No Delamination |
Width of Roll | 51" | |||
Lineal Footage | 118' | |||
Coverage (sqft) | 500 | |||
Weight (lbs) | 14 |
Test Method | Description | Results |
---|---|---|
ASTM F3057 | RF Attenuation Average |
Solid - 73 dB Perforated - 73 dB |
ASTM E408 | Thermal Emissivity |
Solid - 0.03 Perforated - 0.03 |
ASTM E96 | Water Vapor Permeance |
Solid - < 1.0 Perforated > 10 |
ASTM C665 | Mold Resistence |
Solid - No Growth Perforated - No Growth |
ASTM E84 | Flammability Rating | CLASS A |
ASTM E84 | Flame Spread |
Solid - 15 Perforated - 15 |
ASTM E84 | Smoke Developed |
Solid - 5 Perforated - 5 |
ASTM D774 | Bursting Strength |
Solid - 40 psi Perforated - 35 psi |
ASTM C1136 | Puncture Resistance |
Solid - 50 beach units Perforated - 45 beach units |
ASTM C1136 | Tensile Strength |
Solid - 50 lbs/in width MD, 25 lbs/in width XD Perforated - 45 lbs/in width MD, 25 lbs/in width XD |
Reinforcing Tri-Directional Fiberglass |
Solid - 2/in MD, 3/in XD Perforated - 2/in MD, 3/in XD |
|
Caliper/Thickness Micrometer |
Solid - 0.009 in Perforated - 0.009 in |
|
Accelerated Aging 30 Days @ 95% RH, 120°F (49°C) |
Solid - No Corrosion, No Delamination Perforated - No Corrosion, No Delamination |
