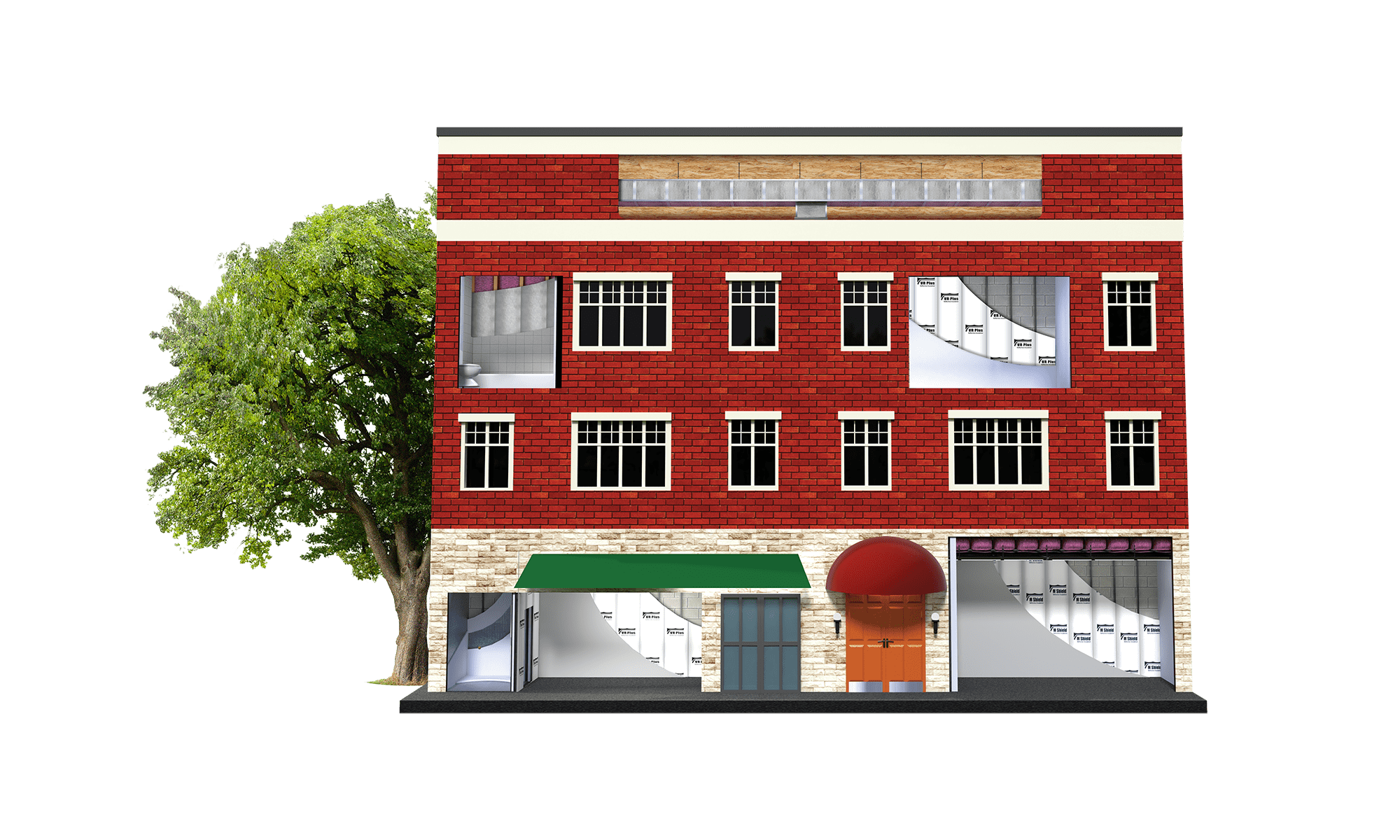

COMMERCIAL & METAL BUILDING APPLICATIONS
REFLECTIVE INSULATION & RADIANT BARRIERS

-
1
HY-Fi® Hybrid Frame Wall & Ceiling Reflective Insulation - Hybrid Frame Wall shown in metal building office with HY-Fi® installed over 2" of fiberglass in 2x4 framing; alternative is HY-Fi® installed over 2" of closed cell spray foam; works with a minimum 1-1/2" enclosed cavity air space to add R7 to the assembly.
-
2

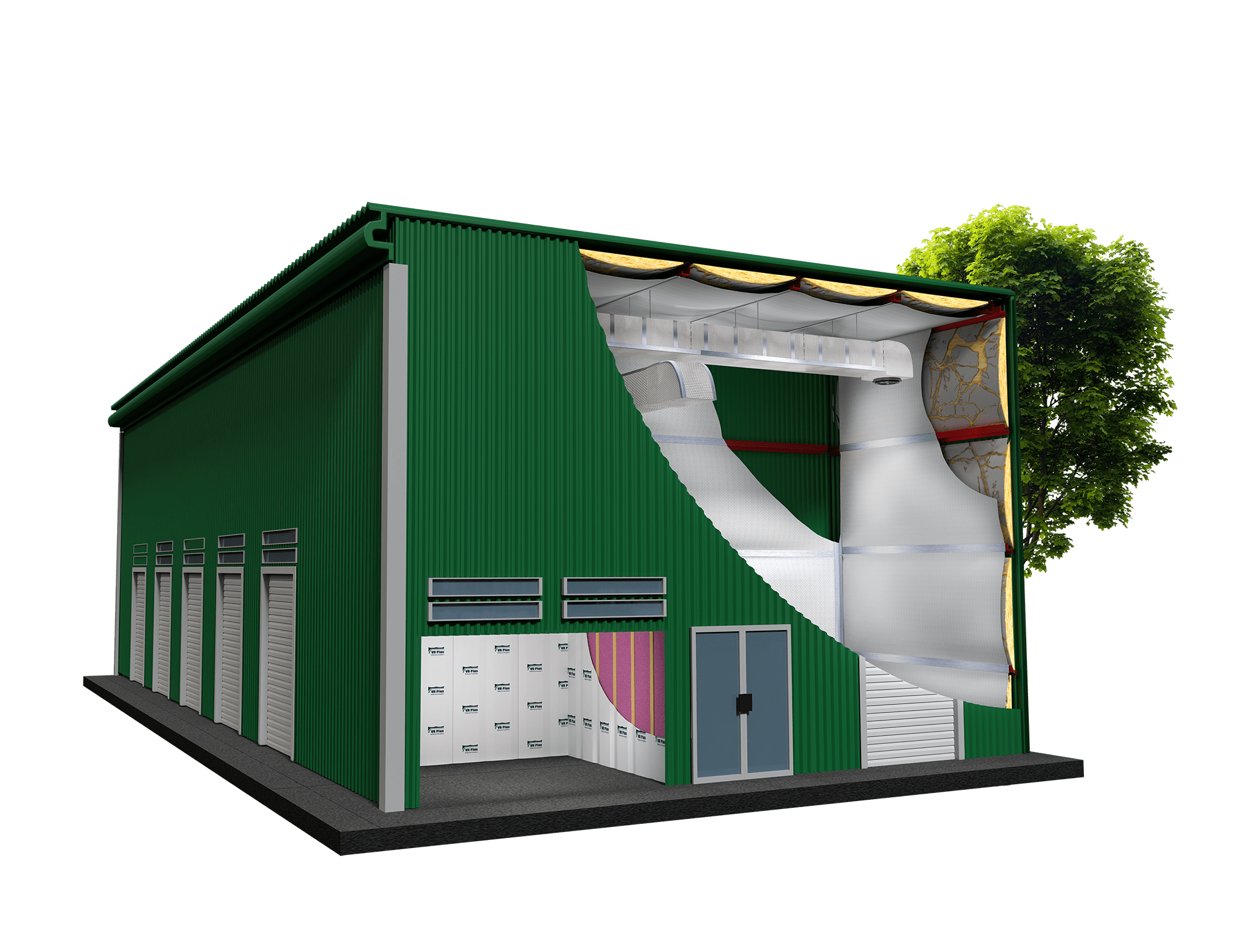

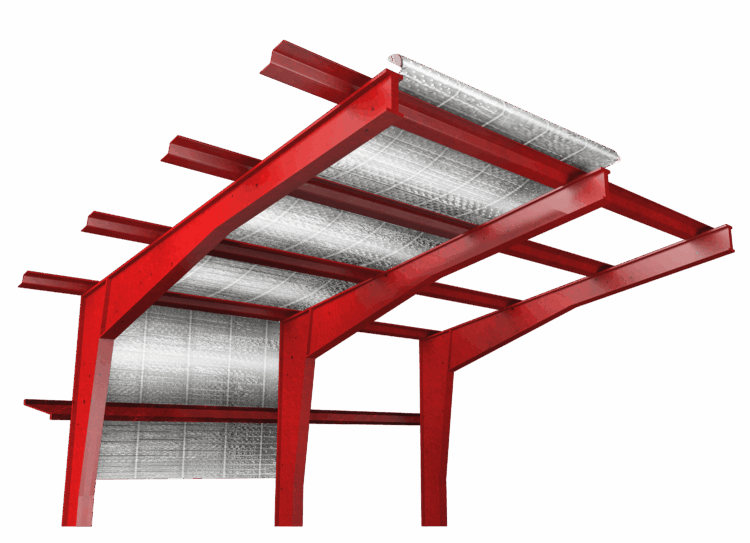

RetroShield System® Metal Building Insulation for Retrofit & New Construction - Metal Building Insulation shown as retrofit with RetroShield System® installed over existing insulation on roof and wall purlins, adds R16.
-
3
SkyFlex VT™ Flexible Sheet Air Barrier - Vapor Transmitting - SkyFlex VT™ shown installed in wet room/bathroom behind shower over fiberglass insulation in 2x4 framing.
-
4
Silver Shield™ Attic Radiant Barrier - Premium Multi-Layer - Silver Shield™ shown installed on bottom of top cord attic trusses.
-
5
HY-Fi® Hybrid Frame Wall & Ceiling Reflective Insulation - Hybrid Frame Wall shown with HY-Fi® installed over 2" of closed cell spray foam in 2x4 framing; works with a minimum 1-1/2" enclosed cavity air space to add R7 to assembly.
-
6

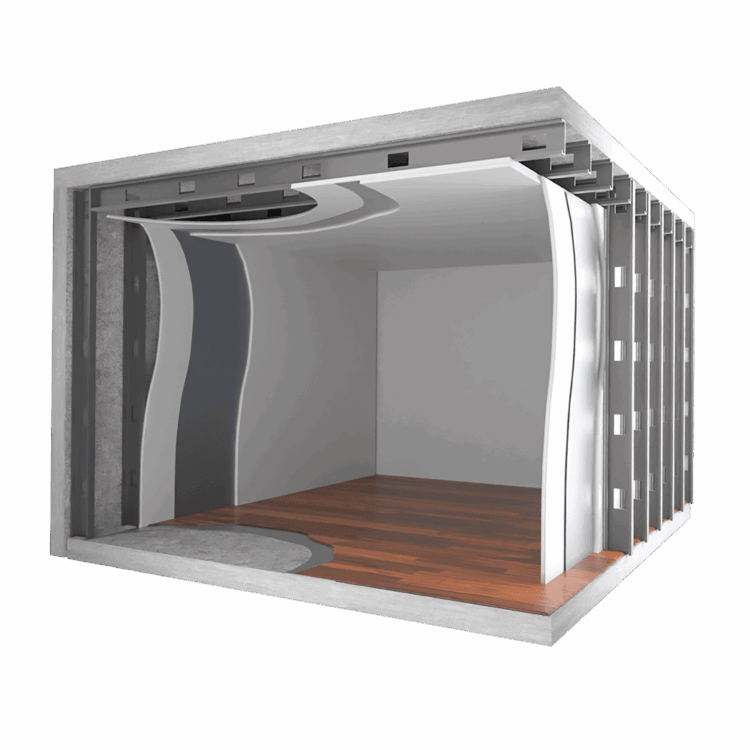

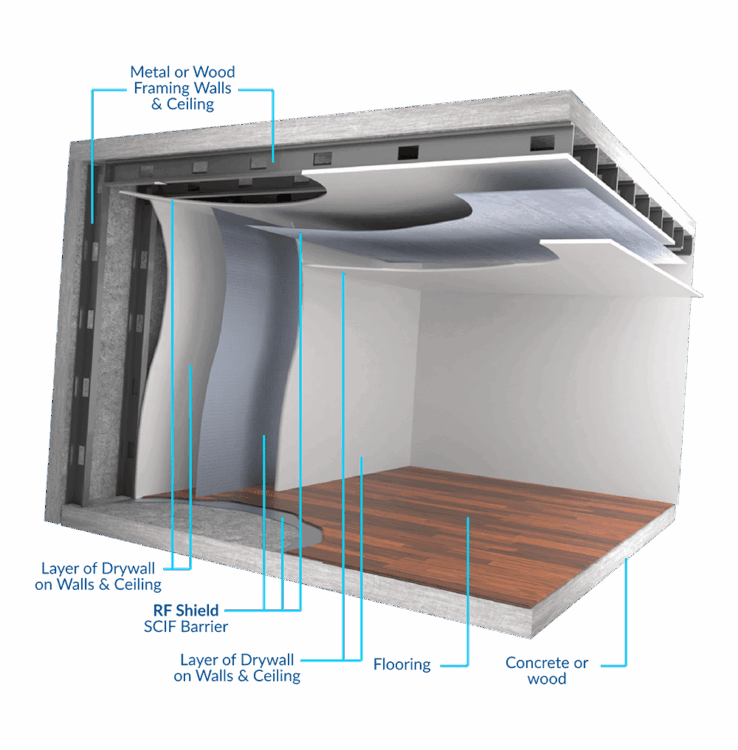

RF Shield™ SCIF Barrier for Sensitive Compartmented Information Facilities - SCIF system shown with RF Shield™ installed between two layers of drywall on the walls, ceiling and floor.
-
7
VR Plus Shield™ Reflective Insulation- Multi-layer for Masonry Walls - Walls shown with VR Plus Shield™ installed on masonry block with 1-1/2" furring, adds R7.
-
8
M-Shield® Reflective Insulation for Masonry Wall - Paperless for Mold Sensitive Projects - Walls shown with M-Shield® installed on masonry block with 1-5/8" metal framing, adds R5.
-
9
FSK Shield™ Class A Facing - Vapor Retarder - Plenum Ceiling system shown with FSK Shield™ attached to floor joists under secured fiberglass batt.

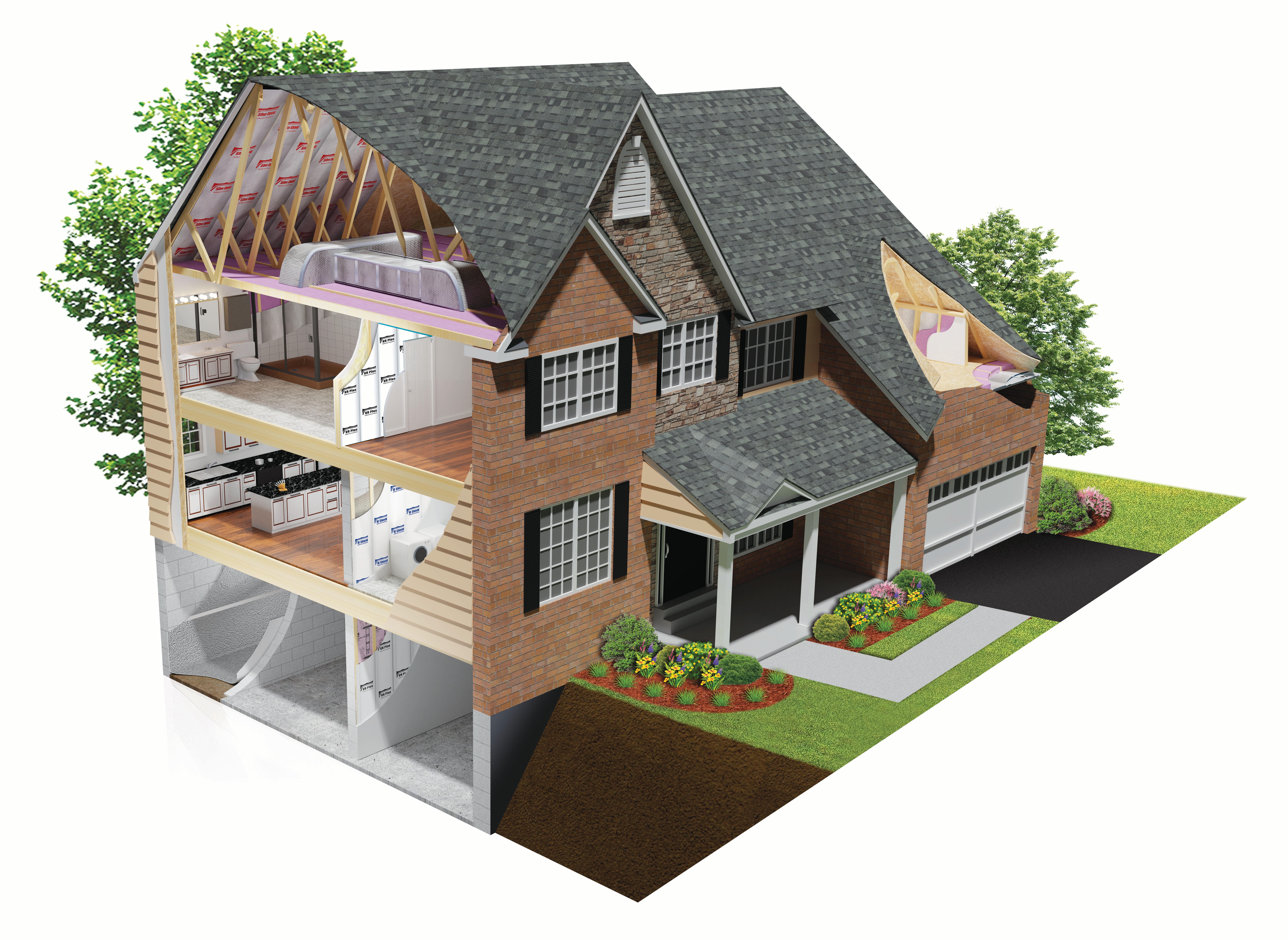

RESIDENTIAL APPLICATIONS
REFLECTIVE INSULATION & RADIANT BARRIERS

-
1

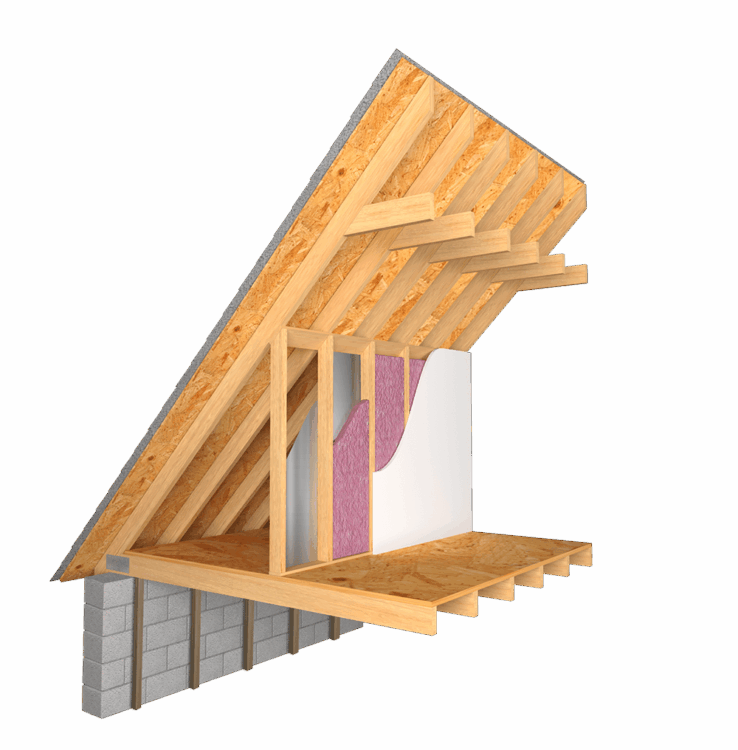

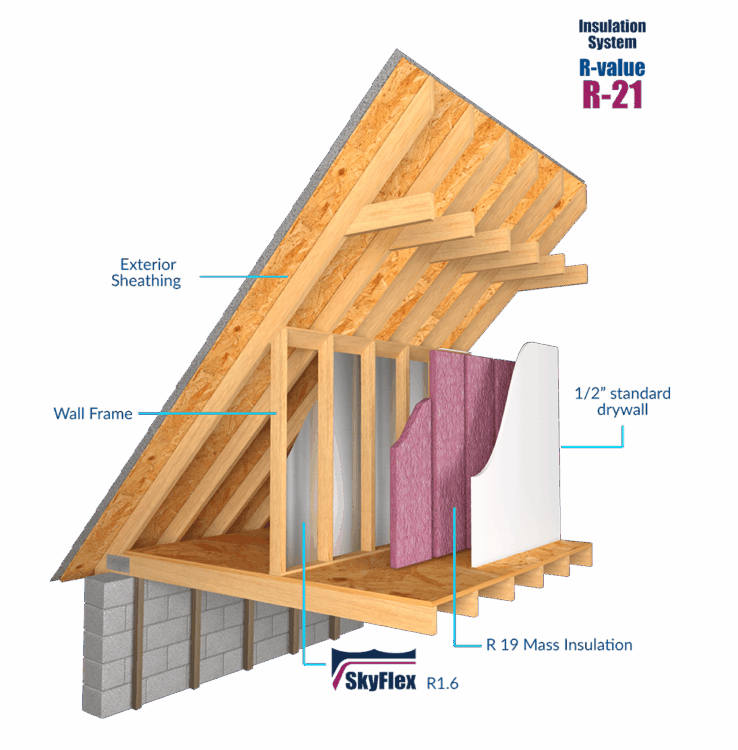

SkyFlex VT™ Flexible Sheet Air Barrier - Vapor Transmitting - Attic Knee Wall shown with SkyFlex VT™ and R19 fiberglass batt installed in bonus room above the garage.
-
2

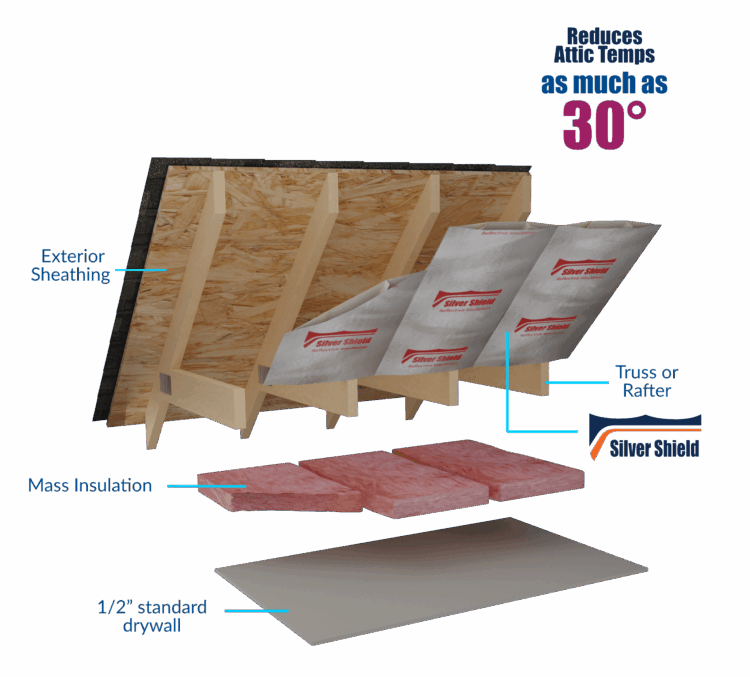

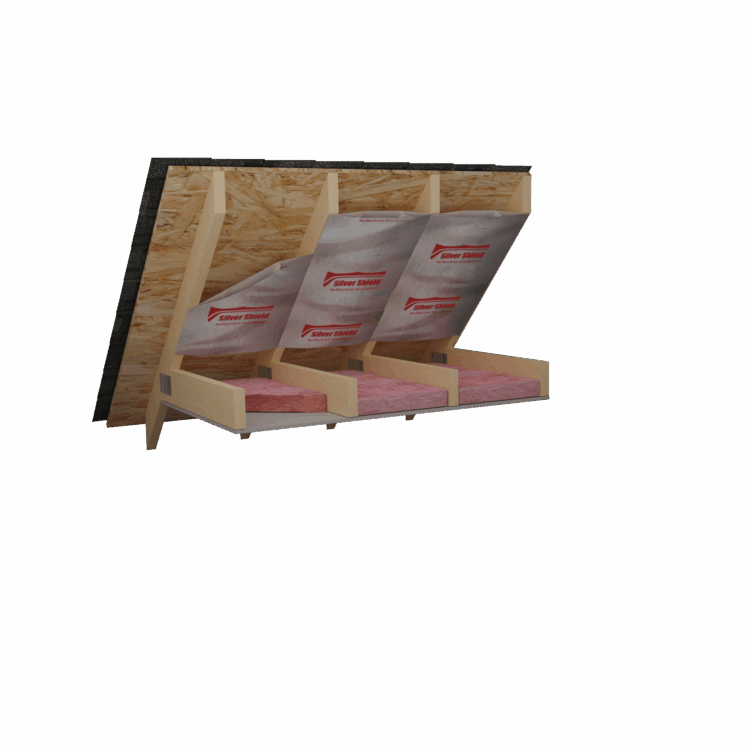

Silver Shield™ Attic Radiant Barrier - Attic Radiant Barrier shown with Silver Shield™ installed directly on bottom of top cord of roof trusses.
-
3
HY-Fi® Hybrid Frame Wall & Ceiling Reflective Insulation - Hybrid Frame Wall System shown with HY-Fi® installed over 2" of closed cell spray foam in 2x4 framing, works with minimum 1-1/2" enclosed cavity air space to add R7 to the assembly.
-
4

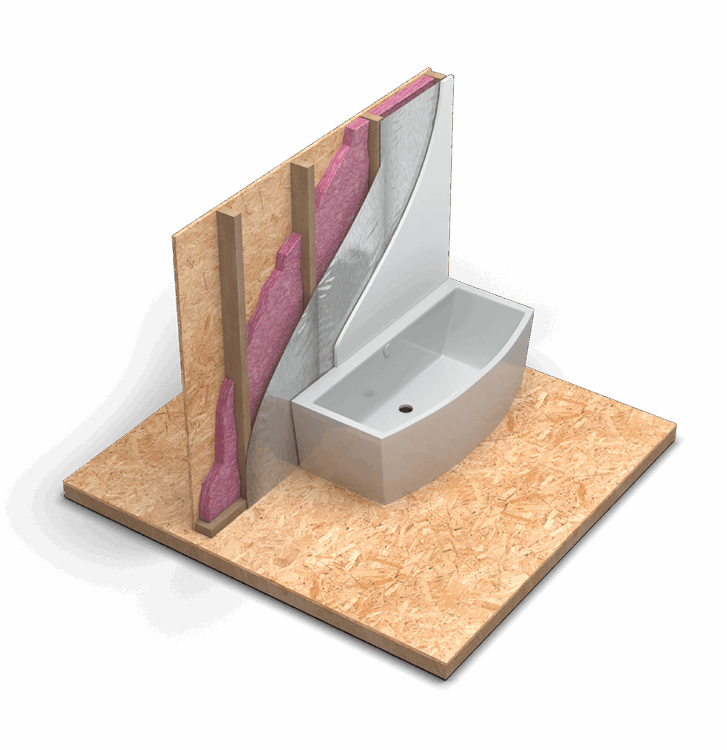

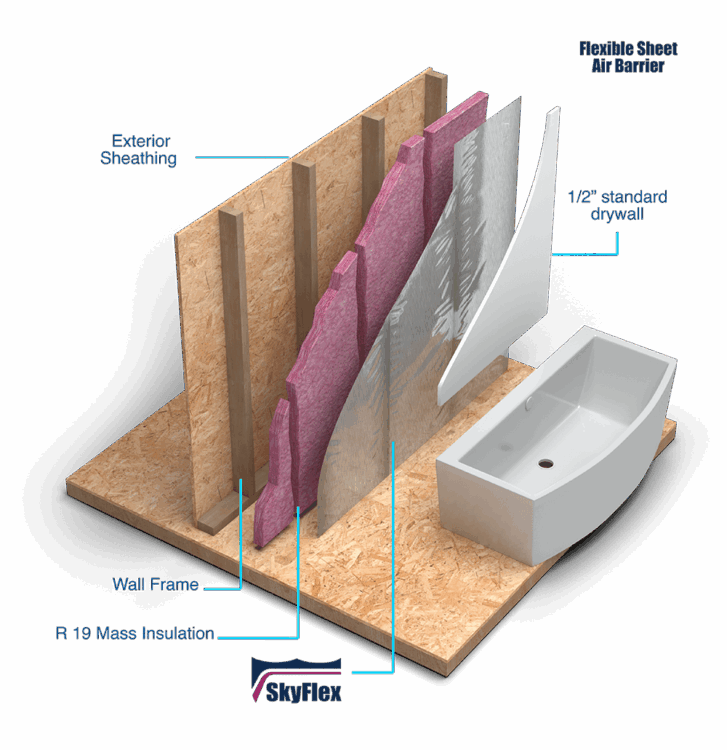

SkyFlex™ Flexible Sheet Air Barrier - Class I Vapor Retarder - Bathroom shown with SkyFlex™ installed behind shower tile.
-
5
VR Plus Shield™ Masonry Wall Reflective Insulation - Walls shown with VR Plus Shield™ installed on masonry block with 1-1/2" furring.
-
6
HY-Fi® Hybrid Frame Wall & Ceiling Reflective Insulation - Hybrid Frame Ceiling shown with HY-Fi® installed over R-19 fiberglass batt on the face of ceiling beam cavities, works with minimum 1-1/2" furring enclosed cavity air space to add R7 to the assembly. Basement Floor.
-
7
VR Plus Shield™ Masonry Wall Reflective Insulation - Basement wall assembly shown with 1/2" foam board (R3) installed on masonry block combined with VR Plus Shield™ attached to 1-1/2" (R7).
-
8

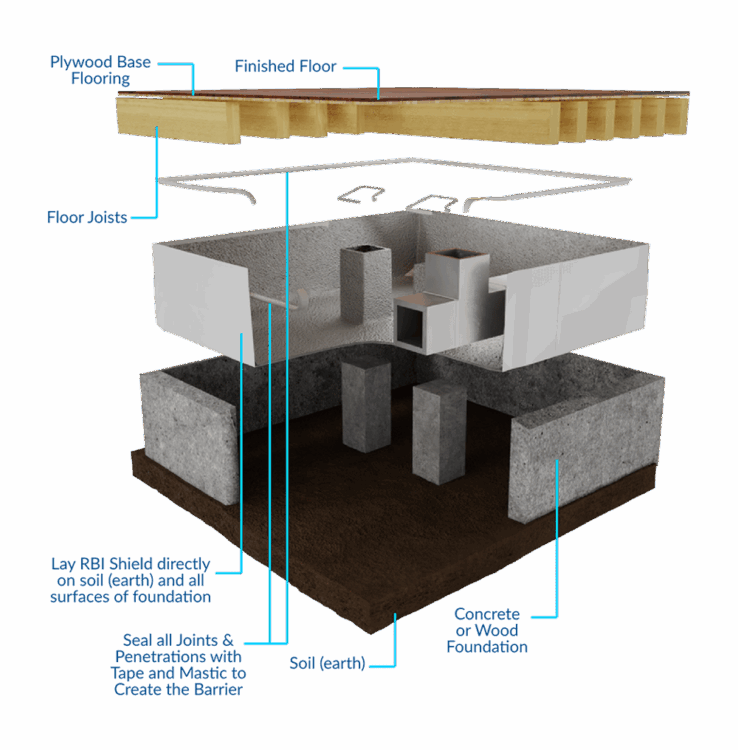

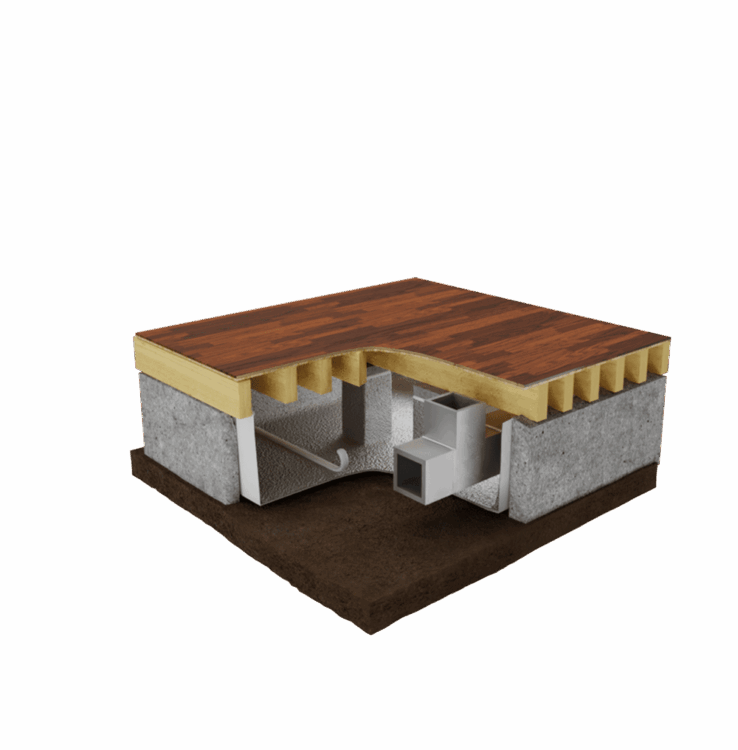

RBI Shield™ Multi-Purpose Reflective Bubble Insulation - Sealed Crawl space shown with RBI Shield™ installed on walls, reflective side up, joints and penetrations sealed with tape and mastic.
Silver Shield™
Go To Product Details PageFi-Foil’s Silver Shield is an insulation cover sheet composed of multiple layers of low emittance (low-e) materials designed to significantly reduce radiant heat transfer. The inside layer is a metalized polymer, while the outside layer is reinforced aluminum foil kraft paper, bonded with a fire retardant adhesive. The layers expand when installed to form a reflective roofing heat shield to provide enhanced thermal performance and protect the low-e surface from the performance reducing effects of dust accumulation. Since metalized and foil-based aluminum products have a near zero water vapor permeance, foil roof insulation Silver Shield is perforated to allow water vapor transmission.
Silver Shield™
Compliance And Approvals
• Meets or exceeds ASTM C1313
• Meets International Building, Residential and Energy Codes.
• Meets Florida Building, Residential and Energy Conversation Codes.

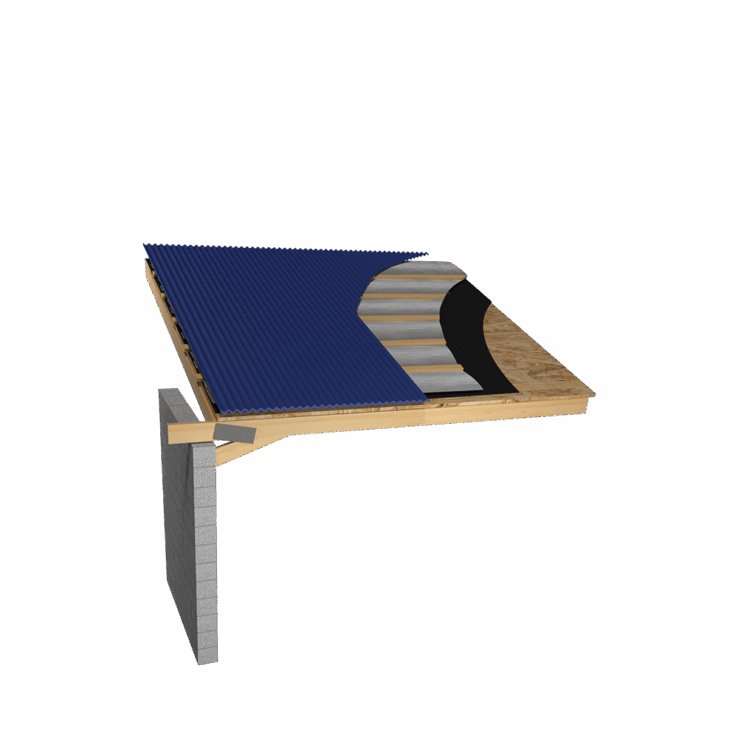

Radiant Shield
Go To Product Details PageFi-Foils Radiant Shield is a heavy duty two-sided aluminum radiant barrier. Designed and reinforced with woven polyethylene, it provides industrial strength for any Radiant Barrier application. The product is also designed with perforations to allow vapor transmission.
Radiant Shield
Compliance And Approvals
● ASTM C-1313, STANDARD SPECIFICATION FOR RADIANT BARRIERS
● FLORIDA BUILDING CODE
● INTERNATIONAL BUILDING CODE
HY-Fi®
Go To Product Details PageHY-Fi insulation is a cutting-edge hybrid product providing a cost-effective approach to creating high R-value walls. The HY-Fi insulation system combines low emittance surfaces and enclosed air spaces. When used in combination with traditional insulation, such as fiberglass batts or spray foam, it creates a superior insulating system at an unmatched price point. To top it off, Hy-Fi installation is a breeze, and the product itself is low-cost, versatile and achieves R-21 in small wall spaces.
HY-Fi®
Compliance And Approvals
• Meets or exceeds ASTM C1224, the Standard Specification of Reflective Insulation.
• Meets International Building, Residential and Energy Codes.
• Meets Florida Building, Residential and Energy Conversation Codes.

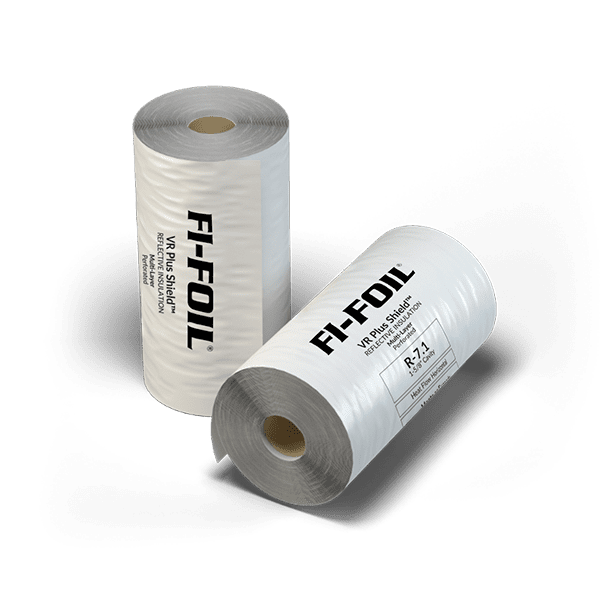

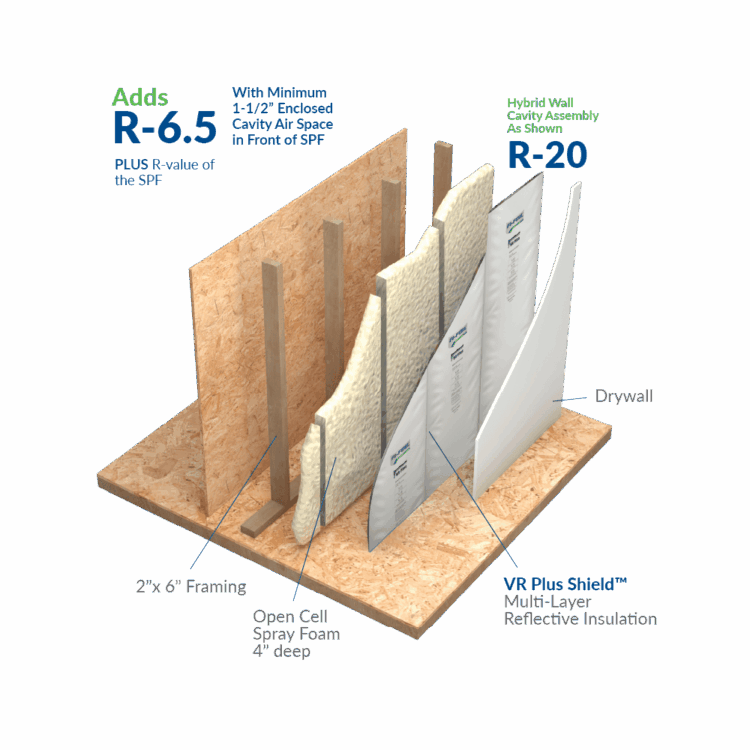

VR Plus Shield™
Go To Product Details PageVR Plus Shield is a multi-layer reflective insulation for use on furred-out masonry walls. This unique insulation has multiple layers that separate when installed to create three reflective air spaces, with R-values up to R-7.1 on 1.5” furring. VR Plus foil wall insulation is available in both a standard, non-perforated version that functions as a vapor retarder, and Hi-Perm, a perforated version that allows vapor transmission depending on the design of the building envelope and climate zone requirements. VR Plus is available with a staple tab for wood framing or with a tape tab for metal framing.
Compliance And Approvals
• Meets ASTM C-1224 Standard Specification for Reflective Insulation
• Meets International & Florida Building & Energy Code Requirements
M-Shield™
Go To Product Details Page
M-Shield™ is an advanced reflective shield insulation designed to resist mold growth by combining a synthetic polymer facing on premium-grade aluminum foil. The synthetic polymers used on reflective walls contain no cellulose, and therefore reduce the risk of exposure to create safer and better air quality. When tested to ASTM standards, M-Shield™ exhibited zero growth of mold or mildew.
Remarkably easy to install, Fi-Foil reflective insulation is one of the fastest growing technologies in the world—designed to get you more R-value for less, saving labor and material.
Compliance And Approvals
• Meets ASTM C-1224-03, Standard Specification of Reflective Insulation
• Meets National/Florida Building and Energy Code Requirements
• Engineering Certification Letter (FL)
AA2 Vapor Shield™
Go To Product Details PageAn insulation solution used on furred-out masonry walls, AA2 vapor shield is remarkably easy to install and effective in improving building performance and comfort. Fi-Foil reflective insulation is one of the fastest growing technologies in the world. It’s designed to get you R-value for less, saving labor and material. With third-party verified code compliance plus an industry leading 10-year transferrable warranty, AA2 is a smart choice to insulate all your masonry buildings. Install AA2 for a superior foil vapor barrier.
Compliance And Approvals
• Meets or exceeds ASTM C1224, the Standard Specification of Reflective Insulation.
• Meets International Building, Residential and Energy Codes.
• Meets Florida Building, Residential and Energy Conversation Codes.
• IAPMO Evaluation Report 291
• Engineering Certification Letter (FL)
Flex Foam
Go To Product Details Page
"Our Flex Foam is a continuous insulation solution that reduces radiant heat transfer for superior performance and a better alternative to traditional foam roll, especially in hot-humid climates. Perforated to allow vapor transmission and coated for long term performance and corrosion resistance, the Flex Foam Low-e aluminum reinforced facing reduces up to 96% of radiant heat transfer.
This foil foam insulation is an effective continuous insulation solution that works to reduce thermal bridging to keep homes cooler in the summer and warmer in the winter for greater efficiency and comfort.
Use alone or as part of a system with ¾” enclosed air space and reflective insulation companion products AA2 or M-Shield to gain R5.7 for the assembly."
Compliance And Approvals
● Meets or exceeds ASTM C1224, the Standard Specification of Reflective Insulation
● Meets International Building, Residential and Energy Codes
● Meets Florida Building, Residential and Energy Conversation Codes
RetroShield®
Go To Product Details Page
RetroShield® is a revolutionary insulation system developed for the metal building industry. Attractive, high performing and remarkably easy to install, RetroShield® is ideal for retrofitting and upgrading insulation systems in new and existing metal buildings. This metal building insulation installation included patented Clip & Pin components that provide an extraordinary one-pass installation, dramatically reducing or eliminating downtime for the operation or building owner.
Our patented Clip & Pin components offer a mechanical attachment to the building frame without bands or other support mechanisms required by other systems on the market.
RetroShield®
Compliance And Approvals
• Meets or exceeds ASTM C1224, the Standard Specification of Reflective Insulation.
SkyFlex
Go To Product Details Page
SkyFlex flexible air barrier is designed for use in residential and commercial building applications. The product consists of two layers of aluminum deposited to a layer of woven polyethylene. When exposed to air films or enclosed air spaces in building cavities, SkyFlex’s low-emittance exterior layers reduce radiant heat transfer.
Fast Facts
• Available for residential and commercial applications
• Flexible for fast and easy installation
• Adds R-Value to building envelope economy and high-performance options
• Available in 500 square foot rolls in 48" or 51" widths
FSK Shield™
Compliance And Approvals
● Meets ASTM E-84
RF Shield
Go To Product Details Page
Fi-Foils RF Shield is a multi-layered specialty barrier with security shielding to block electromagnetic (EM) and radio frequency (RF) interference in order to protect highly sensitive information. Designed for Sensitive Compartmented Information Facility (SCIF) rooms, areas where a TEMPEST enclosure is required or anywhere frequency blocking is desired.
The RF shielding material has two (2) outer layers of 99% Pure Aluminum Foil with an inner layer of Fiberglass reinforcing and Kraft paper, made in the USA. RF protection increases sound attenuation and meets or exceeds minimum requirements for shielding effectiveness at 378 frequencies as tested by an accredited NSA Approved TEMPEST facility. RF Shield provides high performance frequency shielding with an average RF Attenuation of 73 dB.
Compliance and Approvals:
• Meets ASTM F3057-16 Electromagnetic Shielding Effectiveness for Glazings
• Meets ASTM D4935-99 Electromagnetic Shielding Effectiveness for Planar Materials
• Meets or exceeds NSA minimum requirements with RF Attenuation
• Meets ASTM E84 Flammability with Flame Spread 15, Smoke Developed 5"
• Meets ASTM F3057-16 Electromagnetic Shielding Effectiveness for Glazings
• Meets ASTM D4935-99 Electromagnetic Shielding Effectiveness for Planar Materials
• Meets or exceeds NSA minimum requirements with RF Attenuation
• Meets ASTM E84 Flammability with Flame Spread 15, Smoke Developed 5
RF Shield
SkyFlex VT
Go To Product Details Page
SkyFlex VT is a vapor transmitting flexible air barrier for use in residential and commercial buildings. Product consists of a patented vapor transmitting CLAF® fabric reinforced with metalized film. Vapor transmitting air barriers are a leading choice among architects and building science experts who advocate letting the envelope dry to reduce risk of moisture accumulation and increase overall indoor air quality. When exposed to air films or enclosed air spaces in building cavities, SkyFlex VT’s low-emittance metalized surfaces reduce radiant heat transfer for greater efficiency and comfort.
Fast Facts
• Available for residential and commercial applications
• Flexible for fast and easy installation
• Adds R-Value to building envelope Economy and high-performance options
• Available in 500 square foot rolls in 48" or 51" widths
Mechanical Fasteners
Go To Product Details Page
Our Mechanical Fastener Systems are designed to work with all types of metal framing. The Patented Clip-Pin and Washer components make installation quick and easy to significantly reduce downtime for retrofits and save labor with new construction.
The same trusted components used in our RetroShield System® are now available and sold separately. The Mechanical Fastener Systems work well with any metal building insulation (MBI), bubble insulation or facing. Fi-Foil mechanical fasteners can easily handle a backload of cellulose or fiberglass less than R30. When installed 5’ on-center spaced 18” apart, the Clip-Pin Fastener System designed for purlins can provide a mechanical connection strong enough to securely hold in excess of 60 lbs of mass insulation.

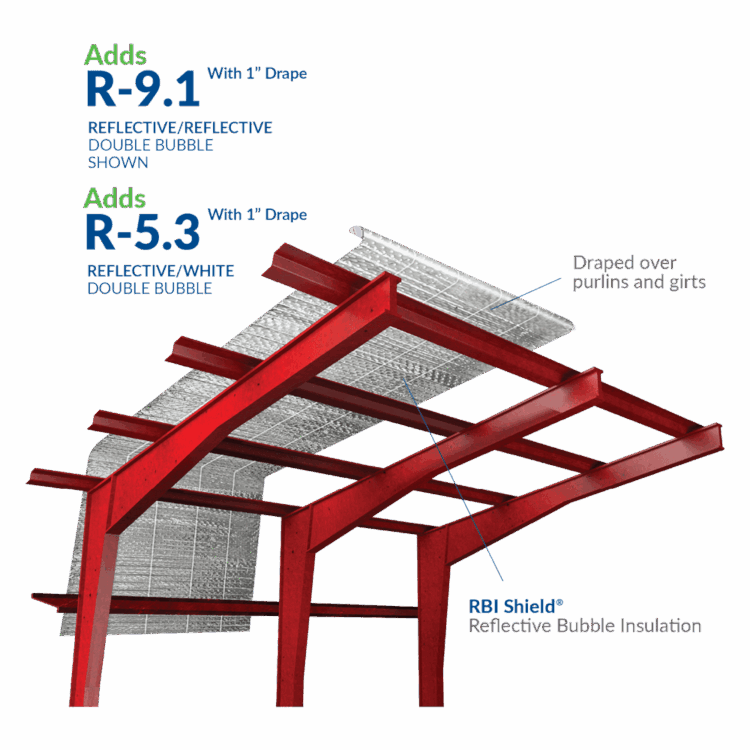

RBI Shield™
Go To Product Details Page
RBI Shield™ is a multipurpose reflective bubble insulation for residential, commercial and institutional markets.
When used for a Sealed Crawl Space application, the system provides an air and moisture barrier to improve indoor air quality and control pests. It acts as a vapor retardant with added R-value to keep the floor warmer in the winter, and cooler in the summer. Less load on HVAC units in some cases can also prolong the systems lifespan.
Available in single and reflective double bubble versions; standard widths of 16", 24", 48", 66", or 72" and 96" available through special order; square edge, staple tab or integrated tape tab; all rolls 125 ft length.
Compliance and Approvals:
• Meets or Exceeds ASTM C1224
• Meets International Building, Residential and Energy Codes
• Meets Florida Building, Residential and Energy Conservation Codes
Compliance And Approvals
● Meets ASTM C-1224-03 STANDARD SPECIFICATION OF REFLECTIVE INSULATION
